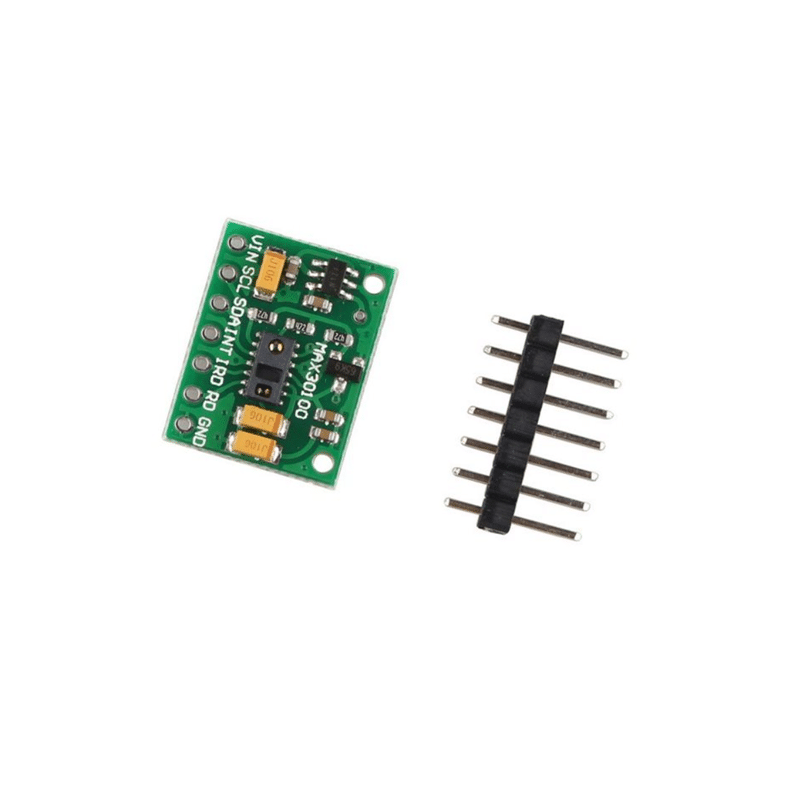

MAX30100 Pulse Oximeter and Heart Rate Sensor (Green Version)

Heart Rate click carries Maxims MAX30100 integrated pulse oximetry and heart-rate sensor. It is an optical sensor that derives its readings from emitting two wavelengths of light from two LEDs – a red and an infrared one – then measuring the absorbance of pulsing blood through a photo detector.

SPECIFICATION

• Type: Biomedical
• Applications: Developing algorithms for pulse oximetry and heart rate readings through the tip of a finger
• On-board modules: Maxim’s MAX30100 integrated pulse oximetry and heart-rate sensor
• Optical sensor: IR and red LED combined with photodetector, Measures absorbance of pulsing blood
• Key Benefits: Motion artefact resillence, Ambient light cancellation
• Interface: I2C
• Input Voltage: 3.3V
• Compatibility: mikroBUS
• Click board size: M(42.9 x 25.4 mm)

MAX30100 heart rate and pulse oximeter sensor datasheet.

PACKAGE INCLUDES

• 1 x Heart Rate MAX30100 modules Sensor
