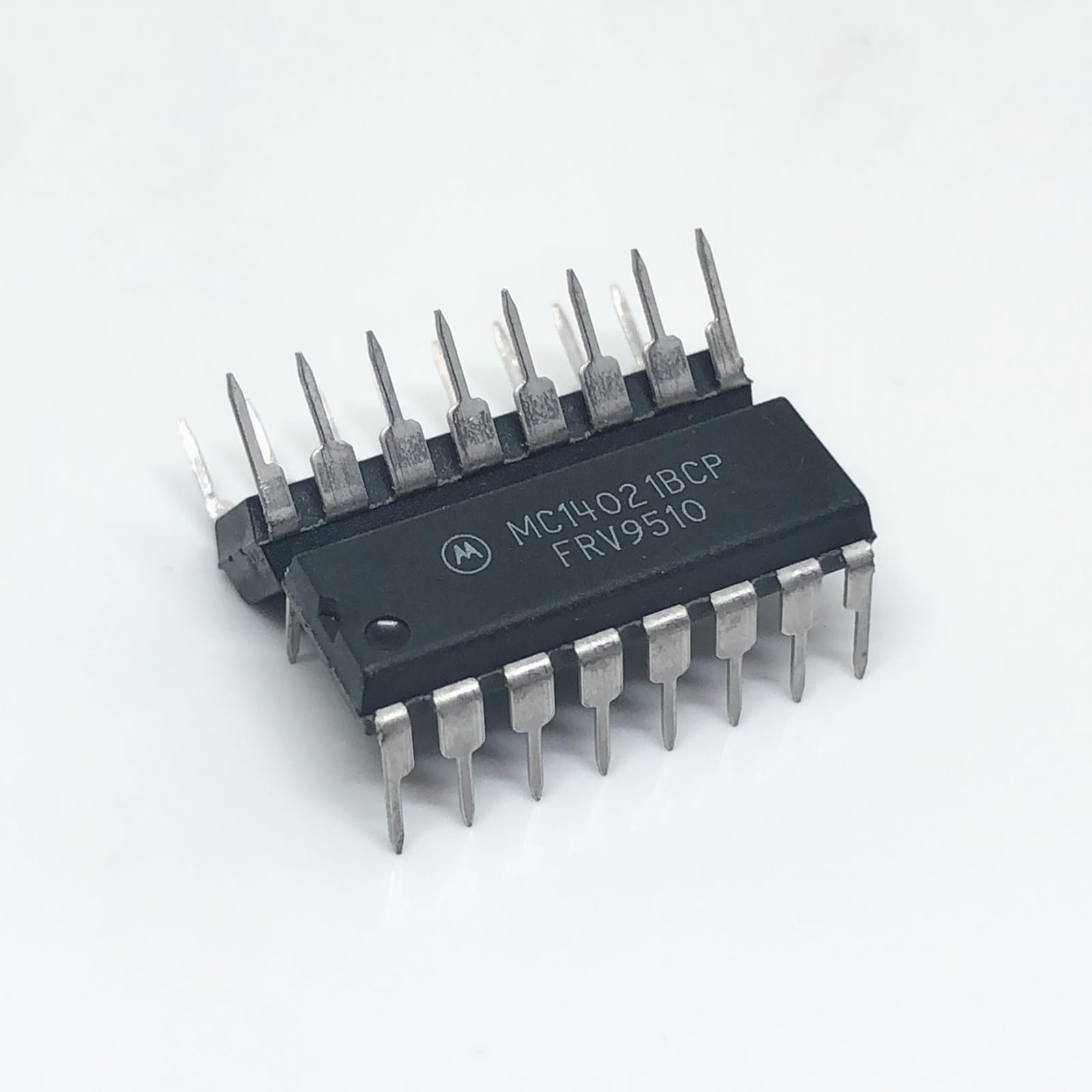

MC14021BCP (8-Bit Static Shift Register) Motorola

The MC14014B and MC14021B 8−bit static shift registers are constructed with MOS P−channel and N−channel enhancement mode devices in a single monolithic structure.

These shift registers find primary use in parallel−to−serial data conversion, synchronous and asynchronous parallel input, serial output data queueing; and other general purpose register applications requiring low power and/or high noise immunity.

Features

• Synchronous Parallel Input/Serial Output (MC14014B)

• Asynchronous Parallel Input/Serial Output (MC14021B)

• Synchronous Serial Input/Serial Output

• Full Static Operation

• “Q” Outputs from Sixth, Seventh, and Eighth Stages

• Double Diode Input Protection

• Supply Voltage Range = 3.0 Vdc to 18 Vdc

• Capable of Driving Two Low−power TTL Loads or One Low−power

Schottky TTL Load Over the Rated Temperature Range

• MC14014B Pin−for−Pin Replacement for CD4014B

• MC14021B Pin−for−Pin Replacement for CD4021B

• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable

• This Device is Pb−Free and is RoHS Compliant
