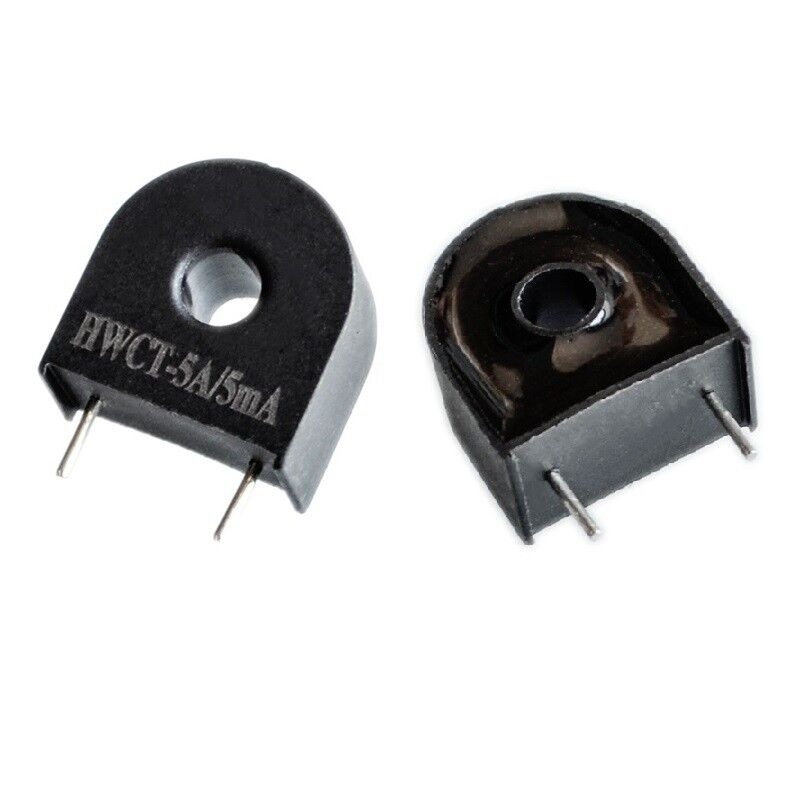

Micro Precision Current Transformer Sensor 5A/5mA (HMCT103C)

Description

HMCT103C  5A/5MA Micro Current Transformer

This is a precision AC current transformer. It is widely used in applications such as sensing overload current, ground fault detection, metering, analog to digital circuits.

Specification

• Rated Primary Current at 50/60 Hz: 5A
• Maximum Primary Current at 50/60 Hz: 20A
• Turns Ratio: Np:Ns = 1:2500
• Current Ratio: 5A:2mA
• Winding D.C. Resistance at 20 C: 155
• Accuracy @RL10 : 2%
• Operating Temperature: -40 to 85 C
• Storage Temperature: -45 to 90 C
• Dielectric Withstanding Voltage: 4,000 V / 1 mA / 1 sec
• Dimensions: 18 x 17 x 10 mm (L x W x D).
