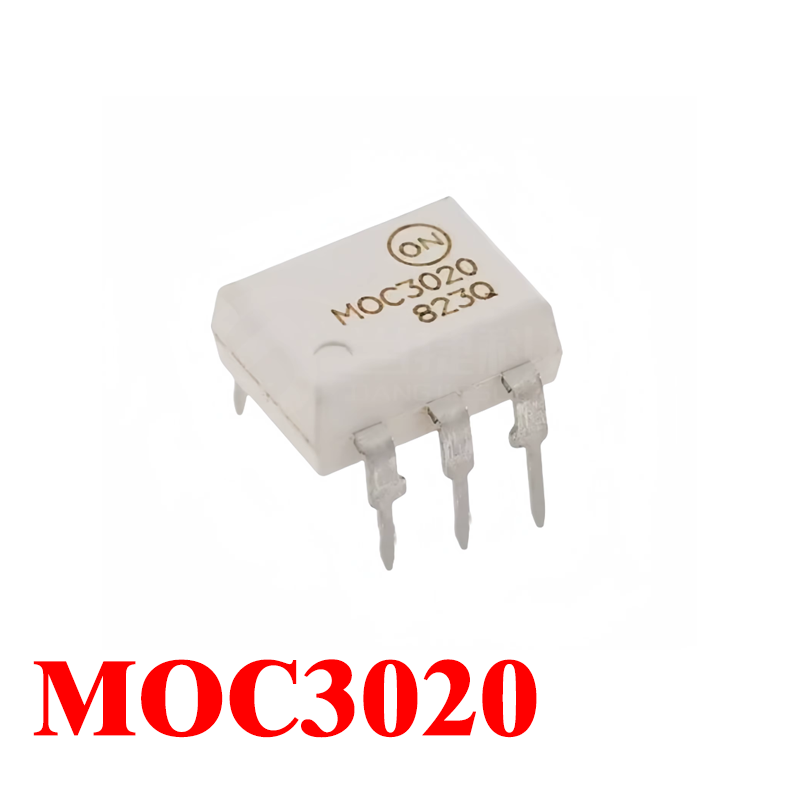

MOC3020 (Optoisolator Triac Driver) DIP-6

The MOC3020 is a 6-pin DIP optoisolator (optocoupler) containing a GaAs infrared LED coupled to a light-activated random-phase silicon bilateral switch (triac driver). It provides high-voltage isolation (up to

) between low-voltage logic (e.g., microcontrollers) and 115/240VAC loads, with a

 peak blocking voltage

FEATURES

• High Repetitive Peak Off-state Voltage VDRM : minimum 400V

• High Critical Rate of Rise of Off-state Voltage dv/dt : minimum 1000V/µs )

• High Isolation Voltage between Input and Output Viso : 5000Vrms • RoHS Compliant

APPLICATIONS

• AC Motor Drives / Starters

• Static AC Power Switch

• Lighting Controls

• Solid State Relays

• Solenoid / Valve Controls

• Temperature Controls
