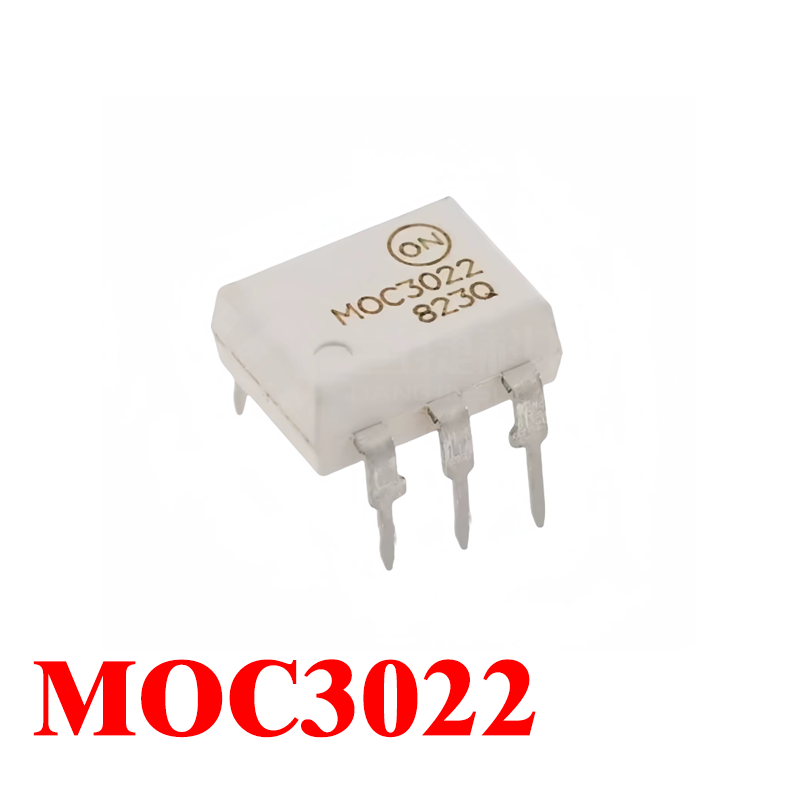

MOC3022 (Optoisolator Triac driver) DIP-6

MOC3022 Overview

The MOC3022 is an optoisolator (optocoupler) with a triac driver. It is commonly used to interface low voltage circuits to high voltage AC loads, such as controlling an AC relay, switching AC appliances, or providing isolation between circuits with different voltage levels. The MOC3022 is designed to provide electrical isolation between the control side (low-voltage side) and the power side (high-voltage side).

Key Features:

1. Optical Isolation:

• The MOC3022 provides optical isolation between its input and output. This means that signals from a low voltage control circuit can trigger a higher voltage AC circuit, with no direct electrical connection between the two, which enhances safety.

1. Triac Driver:

• It is specifically designed to drive a triac, which is used for switching AC power. The triac driver in the MOC3022 can control AC loads effectively without requiring additional components.

1. Input Current Control:

• The MOC3022 has a current-limiting resistor integrated into the device, allowing for easy control of the input current to the LED, which is key for ensuring the optocoupler functions properly.

1. Isolation Voltage:

• It typically provides an isolation voltage of 2500V RMS between the input and output sides, protecting sensitive low-voltage circuitry from the high-voltage AC side.

1. Package Type:

• The MOC3022 is usually available in a DIP-6 package (Dual In-line Package)

1. Triggering Type:

• It provides zero-crossing detection, meaning that it is designed to trigger the triac at the point when the AC voltage crosses zero, reducing electrical noise and minimizing the chances of causing current spikes.

1. High Sensitivity:

• The LED inside the optocoupler has high sensitivity, which allows it to activate the triac even with small input signals.

1. Low Power Consumption:

• The MOC3022 is designed for low power consumption, making it an efficient choice for controlling AC loads while maintaining electrical isolation.

Applications of MOC3022:

1. AC Load Switching:

• The MOC3022 is widely used to switch AC loads such as lights, motors, or heaters, particularly in home automation systems and appliance control circuits.

1. Solid-State Relays (SSRs):

• This optocoupler is a critical component in solid-state relays, which are used for switching high-voltage AC loads based on low-voltage DC control signals.

1. Microcontroller Interfacing:

• It is used to interface a microcontroller or other low-voltage logic circuits to high-voltage AC circuits, providing a safe and isolated control path.

1. AC Voltage Control:

• The MOC3022 can be employed in circuits for AC dimming and AC motor speed control, where phase control is required.

1. Home Automation Systems:

• The device is commonly used in smart home systems to control lights, fans, and other appliances remotely through low-voltage DC signals.

1. Over-voltage Protection Systems:

• The MOC3022 is used in protection systems where an isolated interface between low and high voltage is required, especially in power supply systems.
