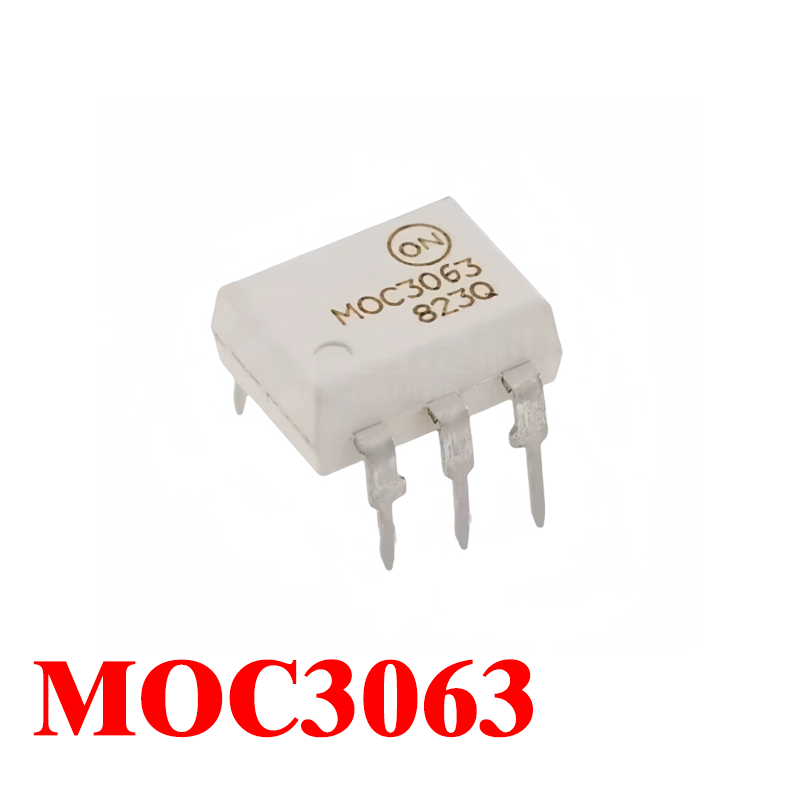

MOC3063 (Zero-Cross Triac driver) DIP-6

The MOC3063-M is a 6-pin zero-cross Phototriac Drive Optocoupler, it consists of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector. This device is designed for use with a triac in the interface of logic systems to equipment powered from 115/240VAC lines.

• Simplifies Logic Control of 115/240VAC Power
• Zero Voltage Crossing
• 5mA Trigger Current
• Load can be Connected to Either Neutral or Hot Line

Applications

Industrial, Motor Drive & Control, Consumer Electronics
