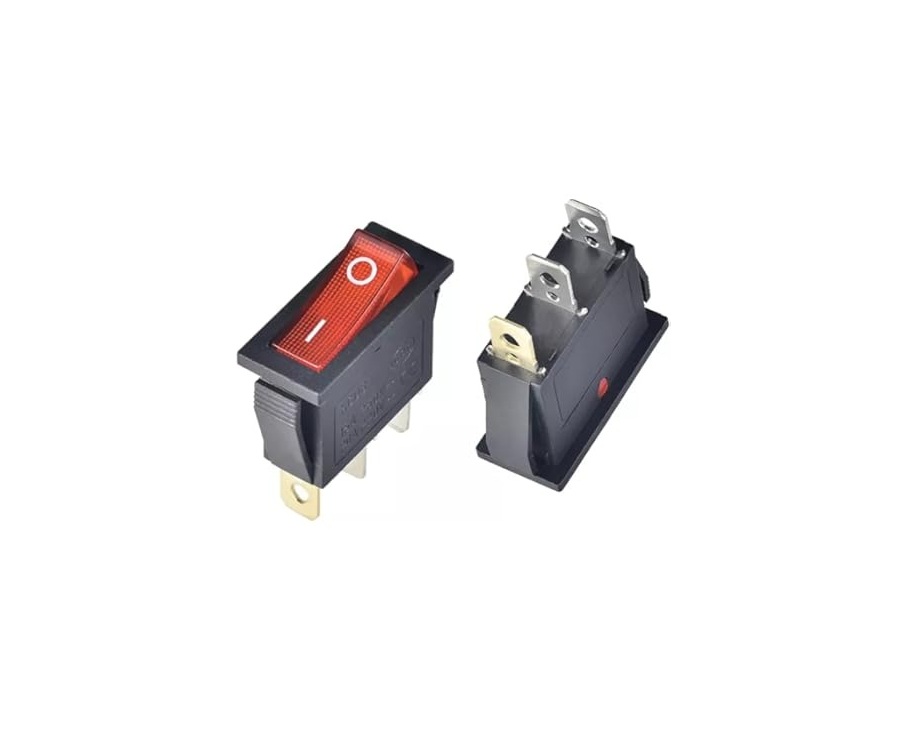

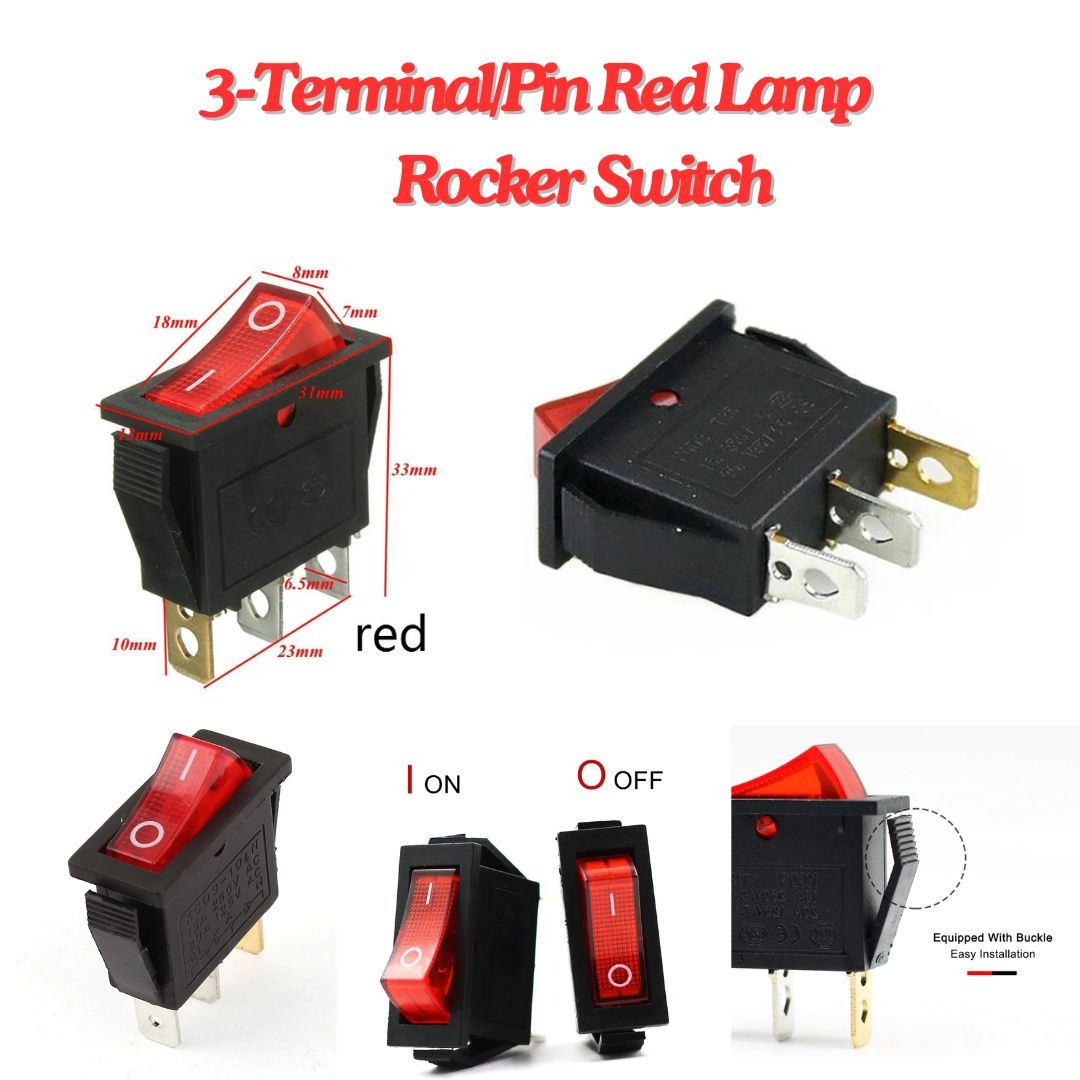

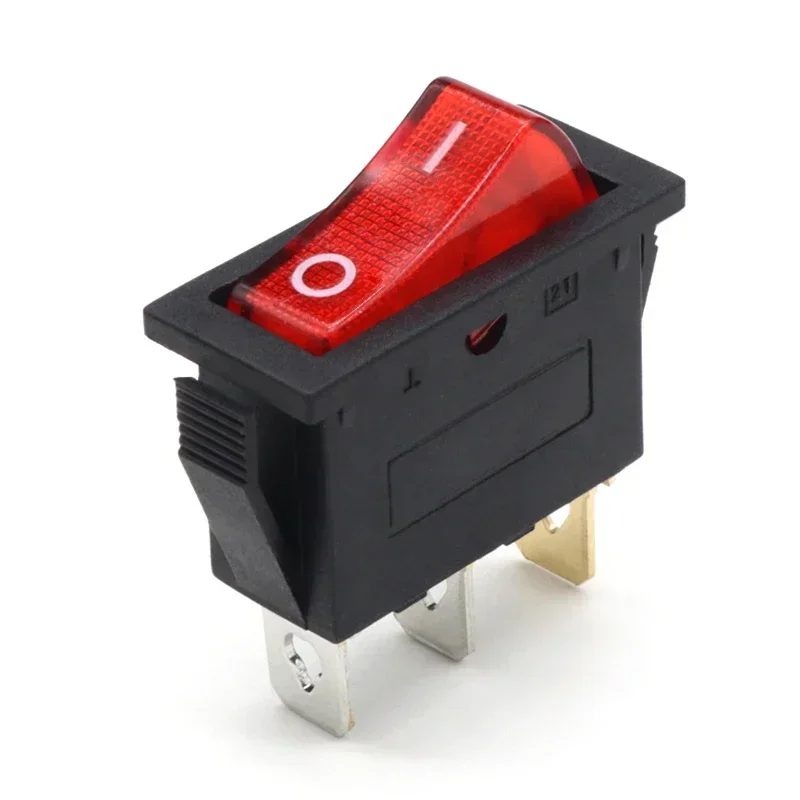

ON/OFF Rocker Switch 3Pins (16A-250VAC) with LED - KCD3

The KCD3 ON/OFF Rocker Switch 3Pins 16A 250VAC 26mm x 10mm with LED is a compact and efficient solution for controlling power in a variety of electronic devices. Featuring a 3-pin SPST configuration, this switch ensures reliable operation with a rated capacity of 16A at 250VAC.

Its snap-in mounting design allows for easy installation without the need for additional hardware.

The integrated LED indicator provides clear visual feedback of the switch status, enhancing usability.

The switch’s durable construction and clear ON/OFF markings make it suitable for a wide range of applications.

Features:

• Single Pole Single Throw (SPST) configuration for straightforward circuit control.
• Rated for 16A at 250VAC, accommodating high-power requirements.
• Integrated LED indicator for immediate visual status feedback.
• Snap-in mounting mechanism for straightforward installation.
• Clear ON/OFF markings for easy operation.
• Durable construction with plastic and metal materials.

Specifications:

Switch Type : Rocker

Operation Mode : ON-OFF

Contact Configuration : SPST

Rated Voltage : 250VAC

Rated Current : 16A

Mounting Type : Snap-in

Panel Cut-Out : 26mm x 10mm

Terminal Type : 3-pin

Indicator : LED

Material : Plastic and Metal

Color : Black with Red LED

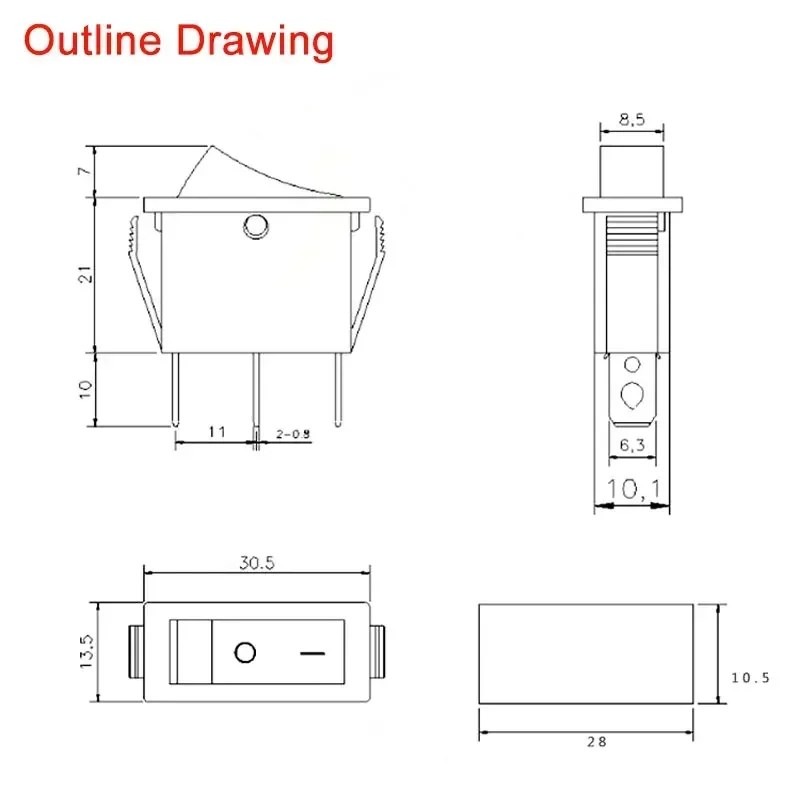

Dimensions : 31mm x 14mm x 15mm

Applications

• Power control in household appliances.
• Main switches in electronic devices.
• Automotive and marine electrical systems.
• DIY electronics and prototyping projects.
• Control panels requiring clear ON/OFF functionality.

Package Contents

• 1x KCD3 ON/OFF Rocker Switch 3Pins 16A 250VAC 26mm x 10mm with LED.
