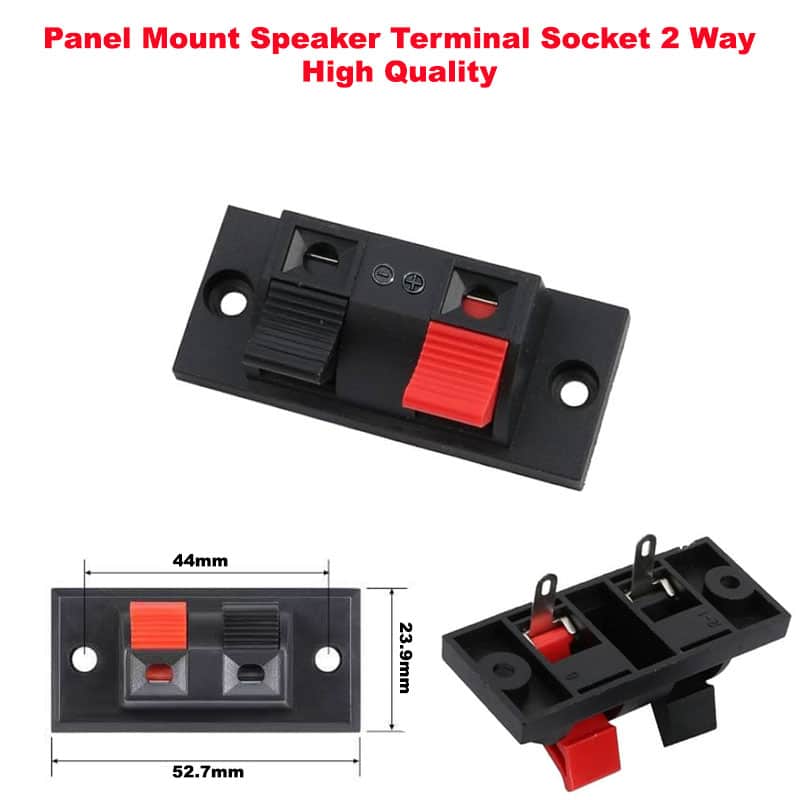

Panel Mount Speaker Terminal Socket 2 Way (High Quality)

Product Details

Features:

1. 2 pins, 2 positions, spring load design, push type speaker terminal board.

2. This spring loaded terminals ensure a solid connection and make wire hookups a Put.

3. Specilized design to your custom speakers or speaker upgrades for speaker cable connecting.

Specification:

1.Product: 2 Terminal Speaker Connector Plate

2.Type:Push Release Type

3.Material: Plastic, Metal

4.RoHS: Yes

5.Rated Load: AC 50V 3A

6.Wire Range: AWG 24-16

7.Temperature: -40 to 55 C

8.Contact Resistance: <= 0.03 Ohm

9.Insulation Resistance: >= 100M Ohm

10.Withstand Voltage: AC 500V 1 Minute

11.Actuating Force: 1 Kgf

12.Color Polarity Coding: Red/Black

13.Life: >10000 Times

14.Position:2 Way (1 row)

15.Mounting Hole Center Distance: 60mm/ 2.4inch

16.Pin Quantity:2 pin

17.Size:52.7*23.9*20mm

Package included:

1PCS x 2-Way Speaker Terminal Strip
