PCB Dots Holes (7x9cm2)

Specification

Description

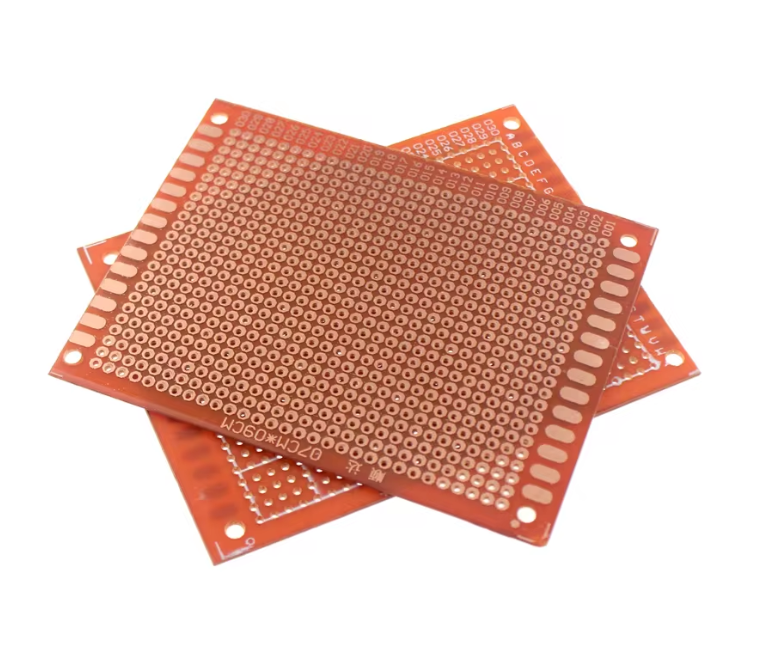

This Universal 7x9cm PCB Board Prototype offers a versatile platform for electronics enthusiasts, hobbyists, and professionals alike.

With dimensions of 7x9 centimeters, it provides ample space for creating various electronic circuits while remaining compact enough for integration into a wide range of projects.

Features:

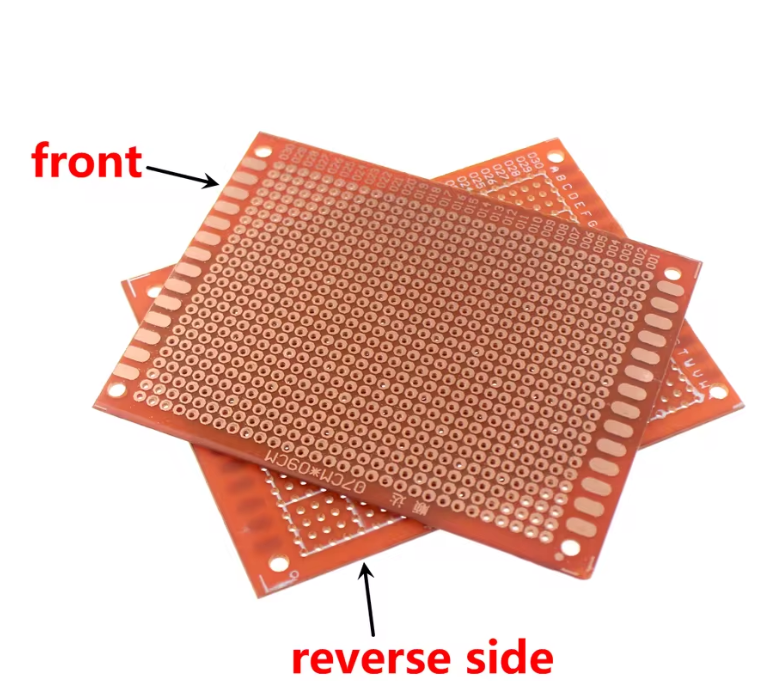

Single-Sided Design: The board features a single-sided layout, simplifying assembly and reducing production costs. This design choice allows for easy accessibility to components and facilitates straightforward point-to-point wiring.

Grid of Mounting Holes: A grid of pre-drilled mounting holes is strategically positioned across the board, enabling convenient placement and soldering of electronic components. These holes adhere to standard spacing for compatibility with a wide range of components.

Point-to-Point Wiring Capability: Designed for point-to-point wiring, this PCB allows for flexible connections between components using individual wires. This wiring method offers freedom in circuit design, making it ideal for rapid prototyping and iterative development.

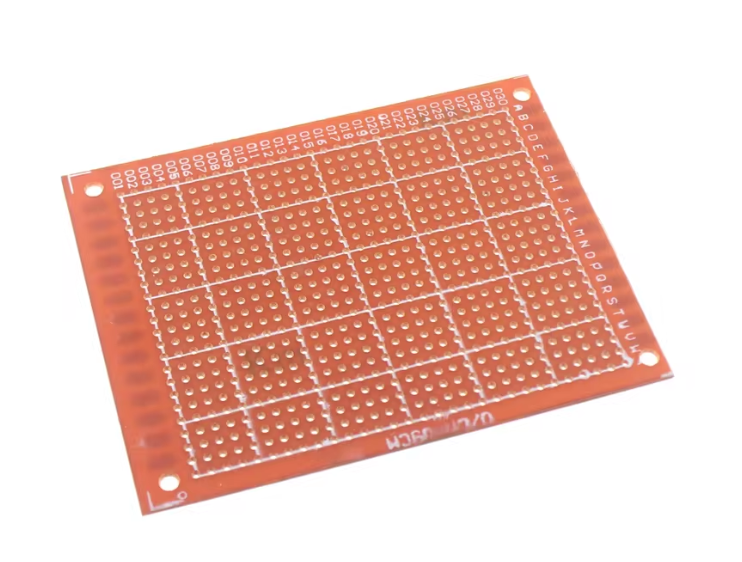

Marked Pads: Each pad on the board is marked with reference labels and grid coordinates, aiding in component placement and circuit design. This feature enhances the ease of use, especially for beginners and those new to PCB prototyping.

Versatile Applications:

Suitable for a myriad of electronic projects, including but not limited to prototyping circuits, educational experiments, DIY electronics, and small-scale production runs. Whether you're building a simple LED flasher or a more complex amplifier, this DIY Circuit Board prototype serves as a reliable foundation.

Technical Details OF DIY Circuit Board

• For point to point DIY soldering
• Material: Single Side Copper PCB
• Thickness:1.2mm (bakelite plate)
• Hole Dia: about 1mm
• Hole pitch: standard 2.54mm
• Color: As shown in the picture

Features

• These prototype boards are pre-drilled and cleaned, more convenient to use
• These universal boards are treated with flux for easy soldering and can extend the serving life
• This universal circuit board is used for point-to-point DIY soldering, neat holes can help you to improve your efficiency

Physical Attributes

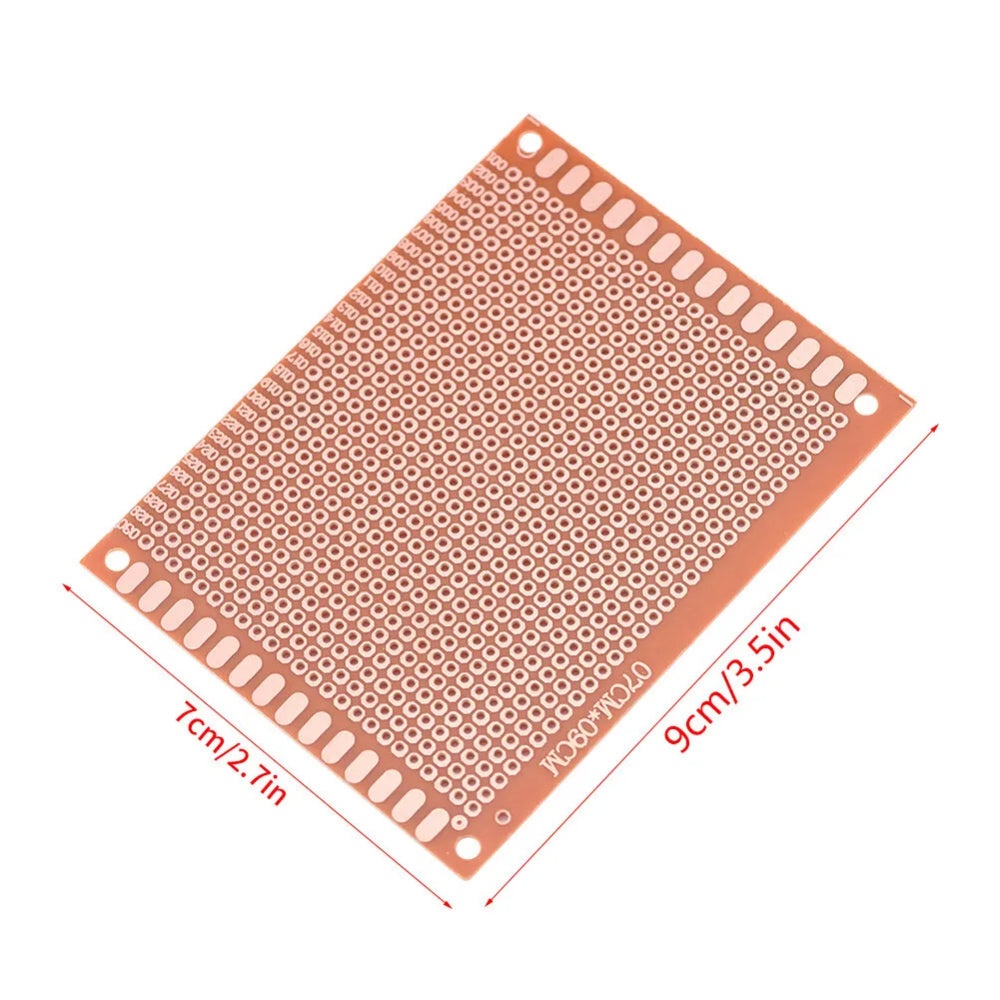

• Dimension:Approx 7*9cm(W*L)
• Weight:Approx 9(g)

Package Includes OF DIY Circuit Board

• 1 x 7x9cm Universal PCB Prototype Single-Sided Circuit Board Point to Point
