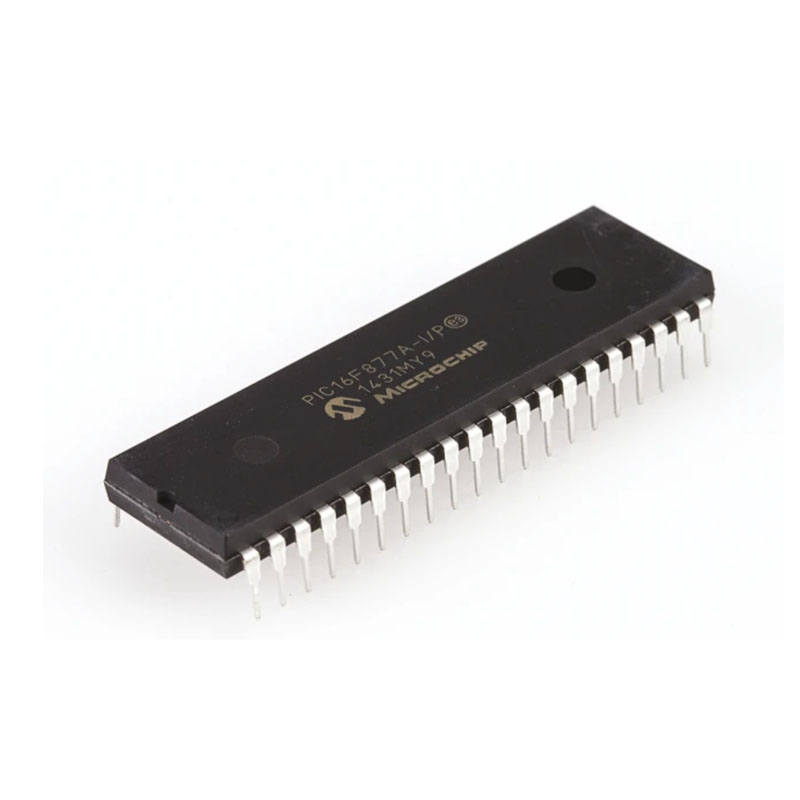

PIC16F877A - I/P , 8bit , PIC Microcontroller ,DIP-40

Features

• 2 PWM 10-bit
• 256 Bytes EEPROM data memory
• ICD
• 25mA sink/source per I/O
• Self Programming
• Parallel Slave Port

Parametrics

Program Memory Type Flash Program Memory Size (KB) 14 CPU Speed (MIPS/DMIPS) 5 Data EEPROM (bytes) 256 Timers 2 x 8-bit - 1 x 16-bit Stand alone PWM 0 Number of ADCs 1 ADC Channels 8 Max ADC Resolution (bits) 10 Number of Comparators 2 Temp. Range Min. -40 Temp. Range Max. 125 Operation Voltage Max.(V) 5.5 Operation Voltage Min.(V) 2 Pin Count 40 Low Power No I2C 1 -I2C Download

• ​Datasheet
