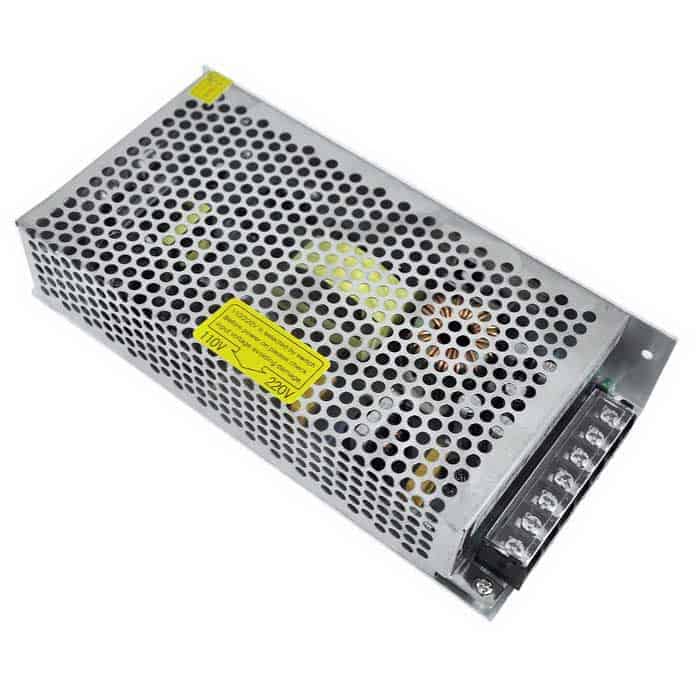

Power Supply (5VDC-30A)

FEATURES:

1. High efficiency, long life and high reliabilility; 2. Low DC ripple, high efficiency; 3. Low operation temperature & long performance life; 4. Excellent insulation property, high dielectric strength; 5. 100% full-load burning test; 6.1 year's warranty.

INPUT:

1. AC input voltage range(V): AC 110V220V+/-15% (switch replacement);

2. Input current(A): 3A /115V,1.5A /230V;

3. Frequency (Hz): 47~63Hz;

4. Efficiency: >90%;

5. Inrush current(A): 20A/115V 400A/230V cold start;

6. Leakage current(mA): <3.5mA/240VAC.

OUTPUT:

1. Output Voltage(V): +5VDC;

2. Voltage Regulation: +/-10%;

3. Output Current(A): 30A;

4. Current Range (A): 0~30A;

5. Rated Power(W): 150W;

6. Start time, hold-up time(ms): 200ms, 100ms/230VAC at full load;

7. Rise time(ms): 30ms/230VAC 25ms/115VAC at full load;

8. Ripple/Noise(mVp-p): 100mVp-p.

PROTECTION:

1. Over voltage Protection: >115%~135% Rated output voltage;

2. Over load Protection: >105%~150% Auto recovery;

3. Short circuit Protection: Latched.
