Programming led stair controller V2-STEP-1002

PIR Motion Sensor Stair Controller DC 12V 24V 400W V2-STEP-1002 32-Channels Staircase Controler For 2835 3528 5050 COB LED Strip

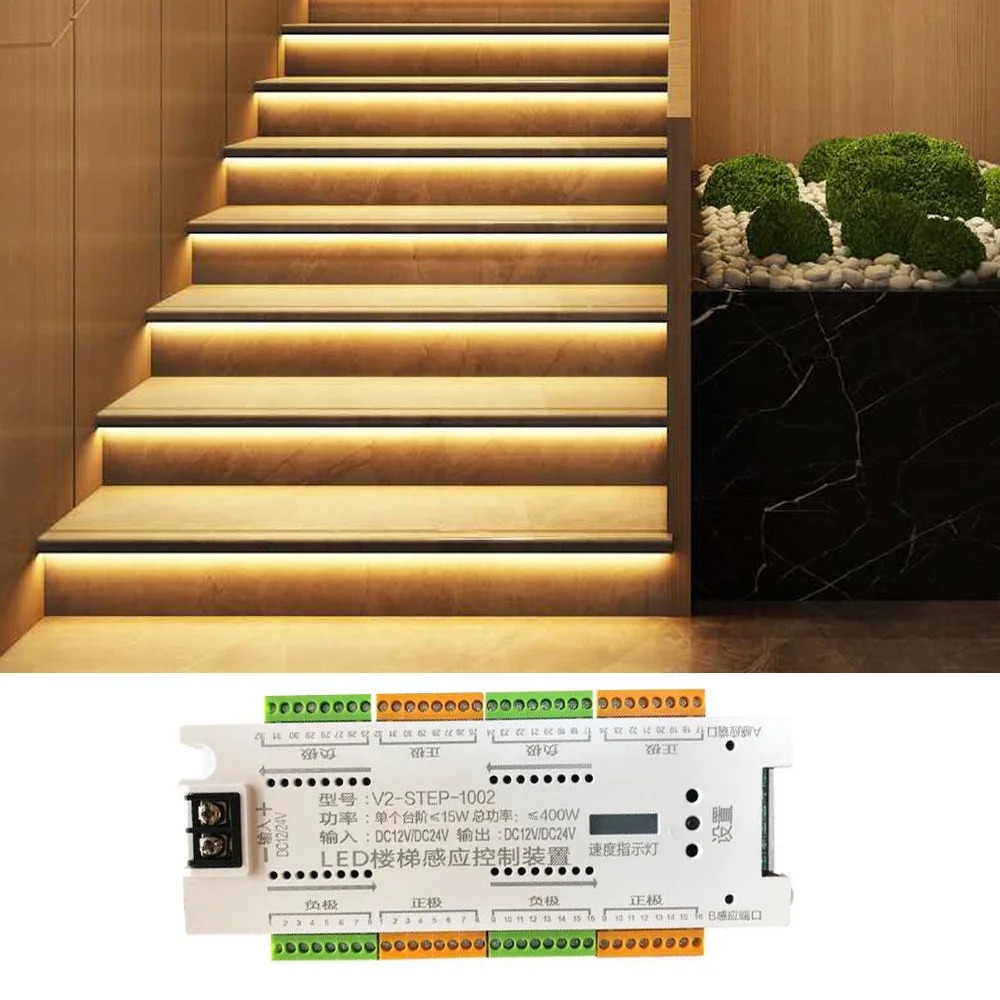

Product description:

Product name: 32-channel stair sensor

Voltage: DC12V/DC24V

Power: 400W MAX

Channel: 32 (set to 1-32 step)

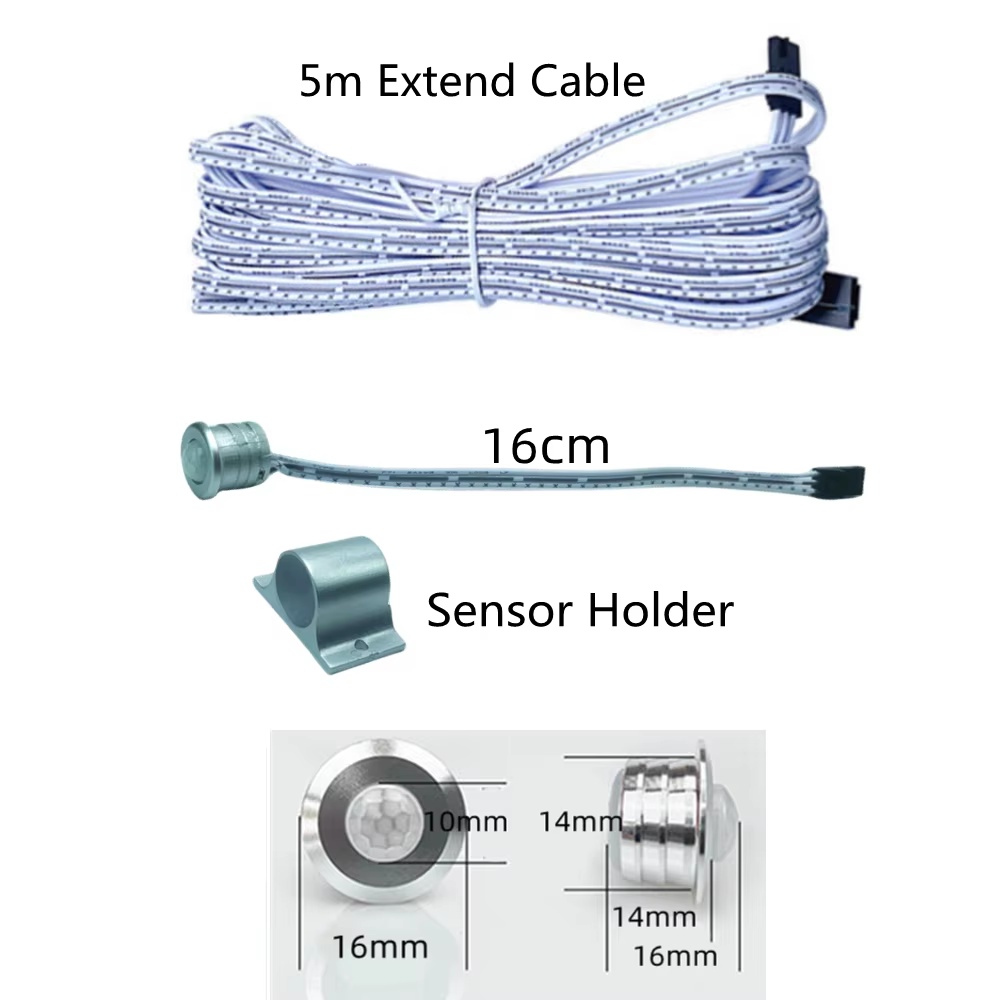

Sensors: 2 Pir Sensor

Product function description:

1. Press the key quickly to adjust the speed of the light strip. There are four gears (60 seconds, 45 seconds, 30 seconds, 15 seconds)

2. Press and hold the key for 5-6 seconds to enter the step setting mode. *Long press the switch once to set the first step stairs, *Short press the switch a second time to set the second step stairs, *Short press the third time to set the third step stairs, and so on.

3. After the operation is completed, press and hold again for 5-6 seconds to automatically save the corresponding settings.

NOTE:

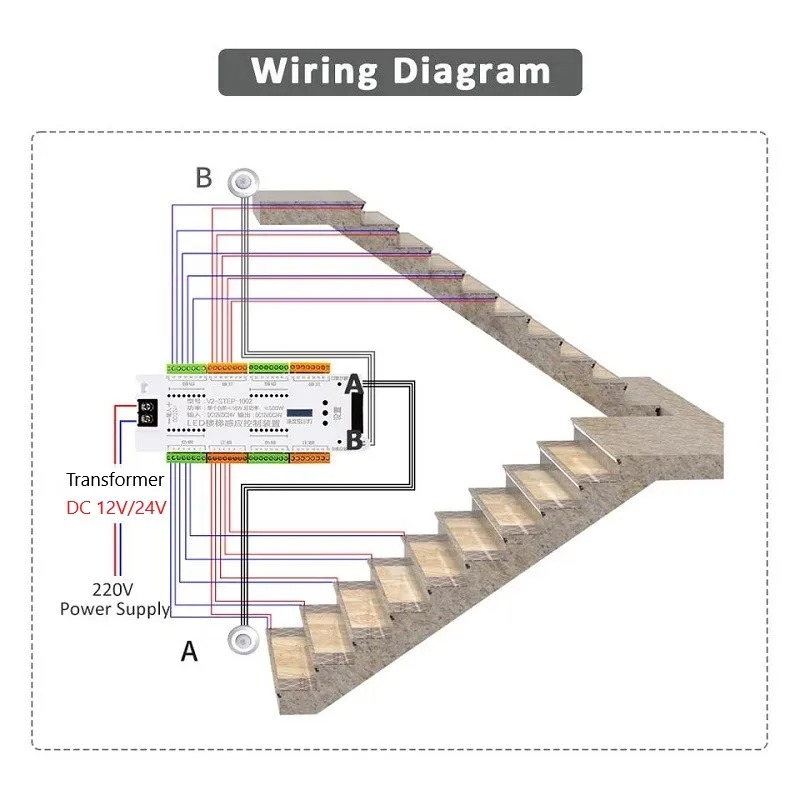

1- A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.

2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.

3- The product is not waterproof.

Important note: The positive and negative terminals of the power supply input of the controller cannot be reversed, the red wire V+ is connected to the positive electrode of the switching power supply, and the blue (or black wire) V- is connected to the negative electrode of the switching power supply.

How to use

How to connect V2-STEP-1002 $tair Light Induction Control Unit

Product package:

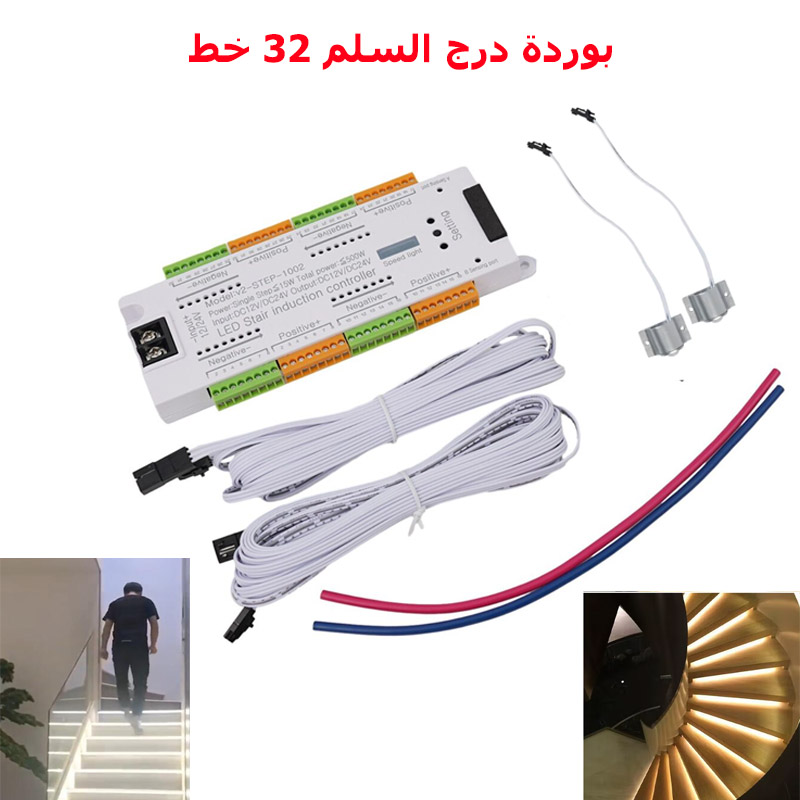

Only 1PCS LED controller( Not included the led strip and power supply )

there is pdf detailed user manual

v2-step-1002 manual
