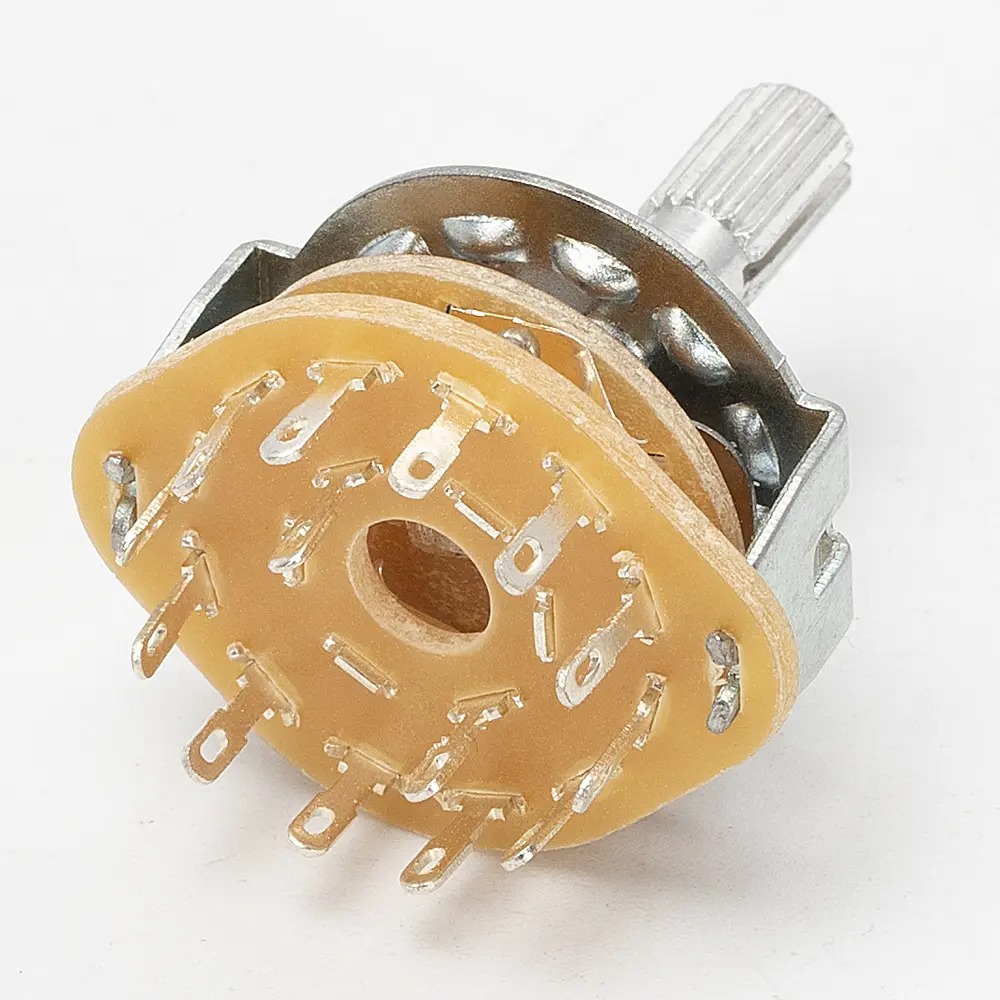

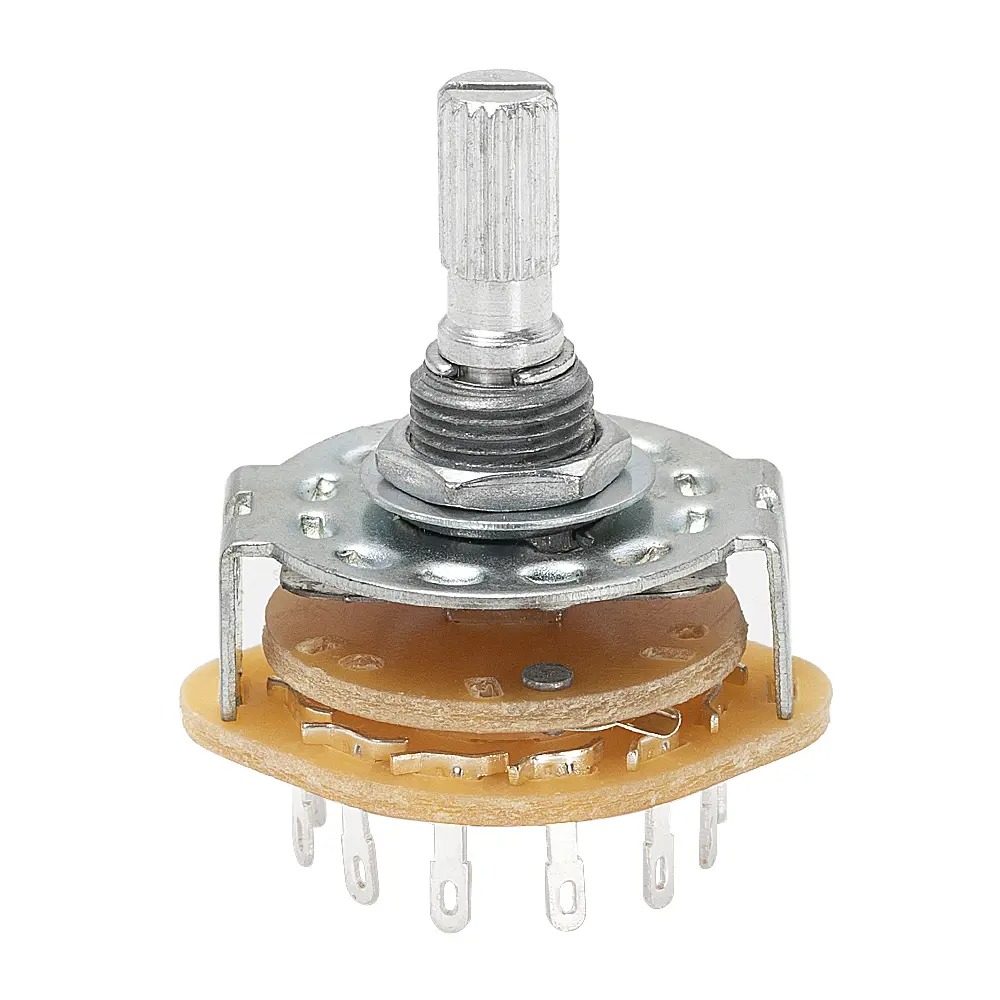

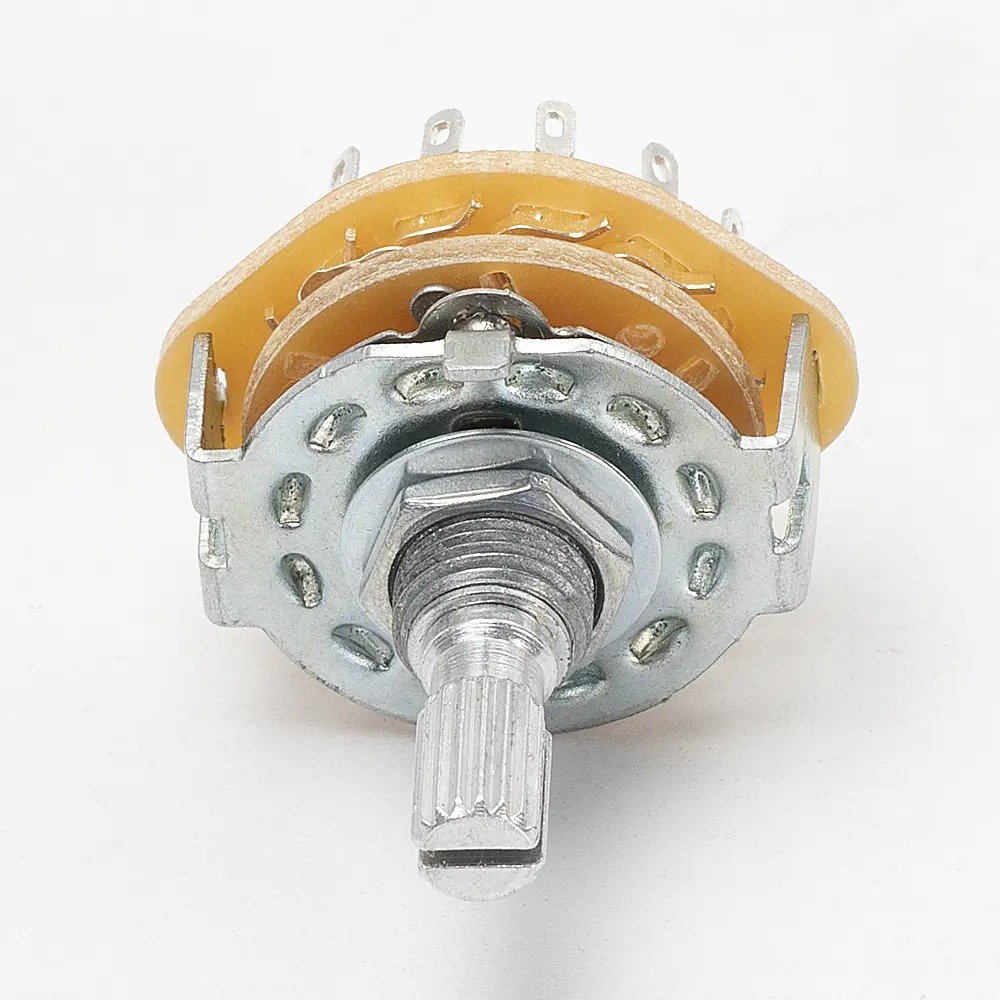

Rotary Switch Selector 2 Pole 6 Position 2P6T

 Rotary Switch Selector.

They can be made with PCB terminal or solder terminal.
They also can be made with different poles and different positions.
It is most popular used in audio equipment.

Many of our rotary switches are MIL qualified to exacting electrical, mechanical and environmental standards. We offer many options including isolated positions, spring returns, adjustable stops, concentric shaft switches and configurable keylock switches. Standard rotaries can be configured with solder lug termination, PC termination, various angles of throw and multiple poles.

specifications:

• Type: rotary 6-state
• Number of circuits: 2
• Number of leads: 14
• Electrical parameters:
  • 0,3 A / 125 V AC
  • 1 A / 30 V DC
• Contact resistance: 25 mΩ
• Lifetime: 10,000 switchings
• Rotation angle one position: 30 °
• The switch does not short-circuit when switching

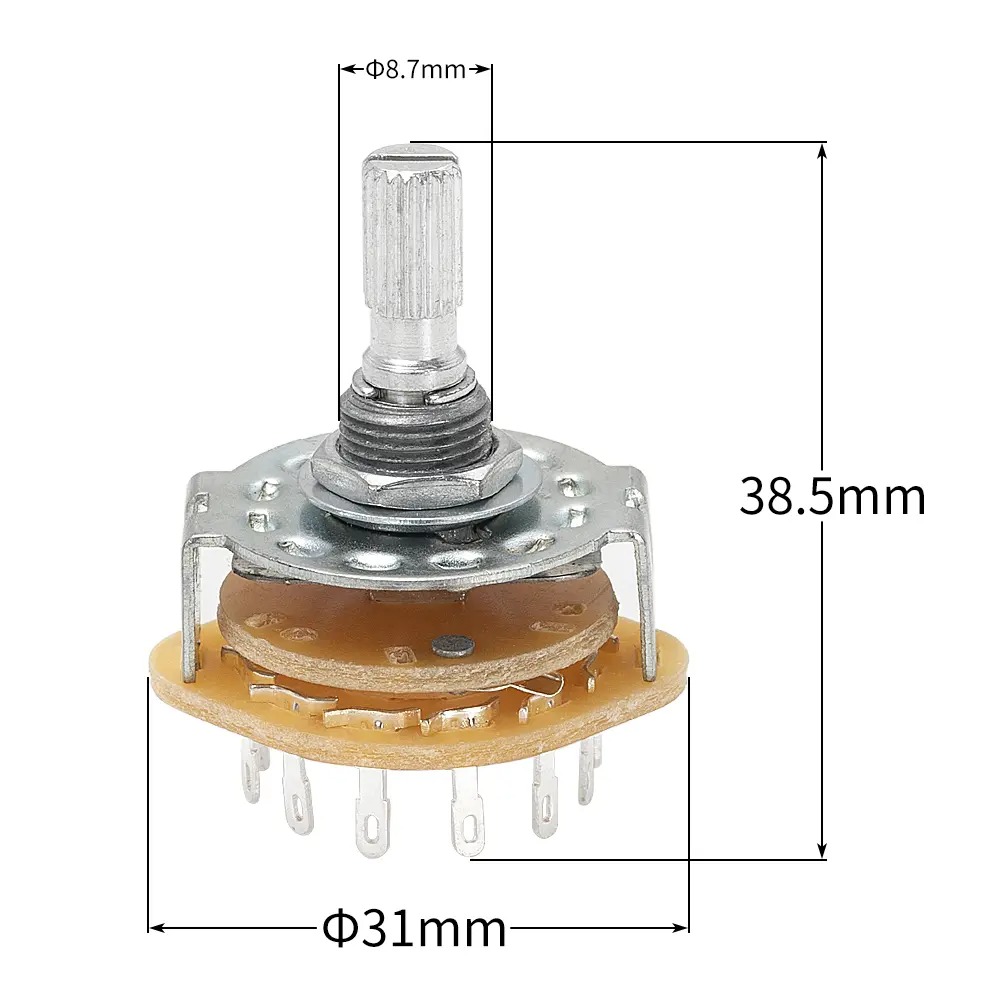

• Axle thread diameter: approx. 6 mm
