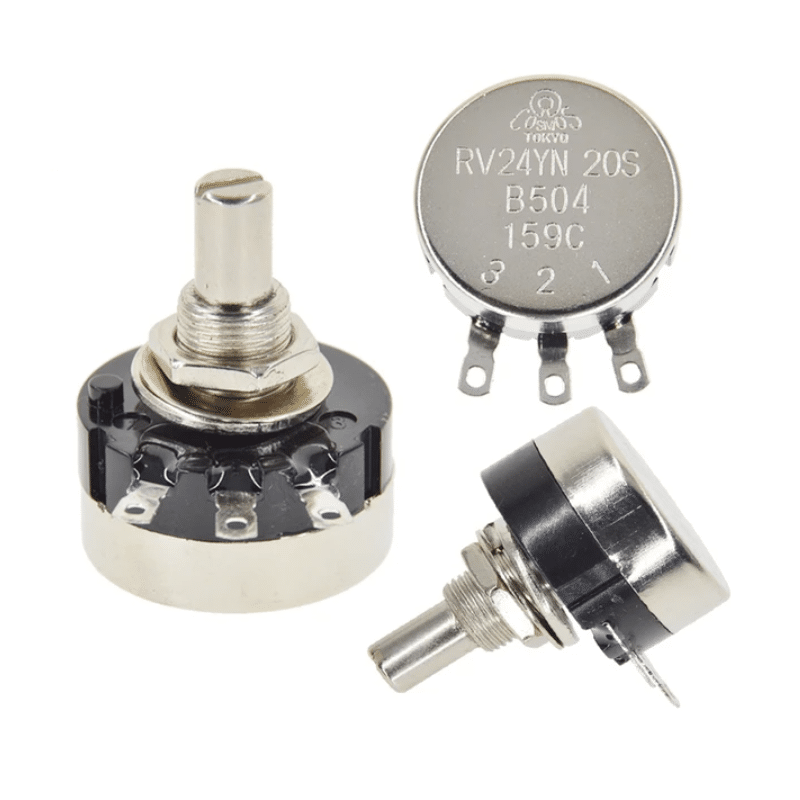

Rotary Taper Potentiometer POT (500K Ohm) (RV24YN20SB504)
In Stock
In Stock
Add to WishlistRemove from Wishlist
CompareAdd to Wishlist
Description
RV24YN 20S B504 500K Ohm Carbon Composition Rotary Taper Potentiometer Pots
Describe
500K Ohm Resistance, 10% Tolerance, 3 Terminals Potentiometer, come with a Dial and a Control Knob.
This Potentiometer is widely used to adjust timer, speed, temperature in all kinds of equipment’s.
| Product Name | Potentiometer |
| Model | RV24YN-20S |
| Resistance Value | 500K Ohm |
| Rated power | 2W |
| Type | Single Linear (Type B) |
| Shaft Diameter | 6mm / 0.2″ |
| Shaft Length | 10mm / 0.4″ |
| Mounting Thread Diameter | 9mm / 0.35″ |
| Base Diameter | 25mm / 0.1″ |
| Total Height | 35mm / 1.4″ |
| Material | Metal, Electronic Parts, Carbon Film |
| Adjustment Type | Top Adjustment |
| Package | 1 x Potentiometer |
Specification
Resistance Tolerance: +/-10%;
Rated power: 2W
Mechanical angle: 300°±5°
Electrical angle: 280°±10°
Rotational life: ≥15000 rpm
Potentiometer Body Size: 2. 5 x 1. 4cm/ 1 inch x 0. 55 inch (D*T)
Total Size: 40 x 38mm/1. 6 inch x 1. 5 inch(Dial D*H);
Color: Black, Silver Tone
Material: Metal + Plastic
Weight: 28g;
Package Content:
1*Potentiometer
