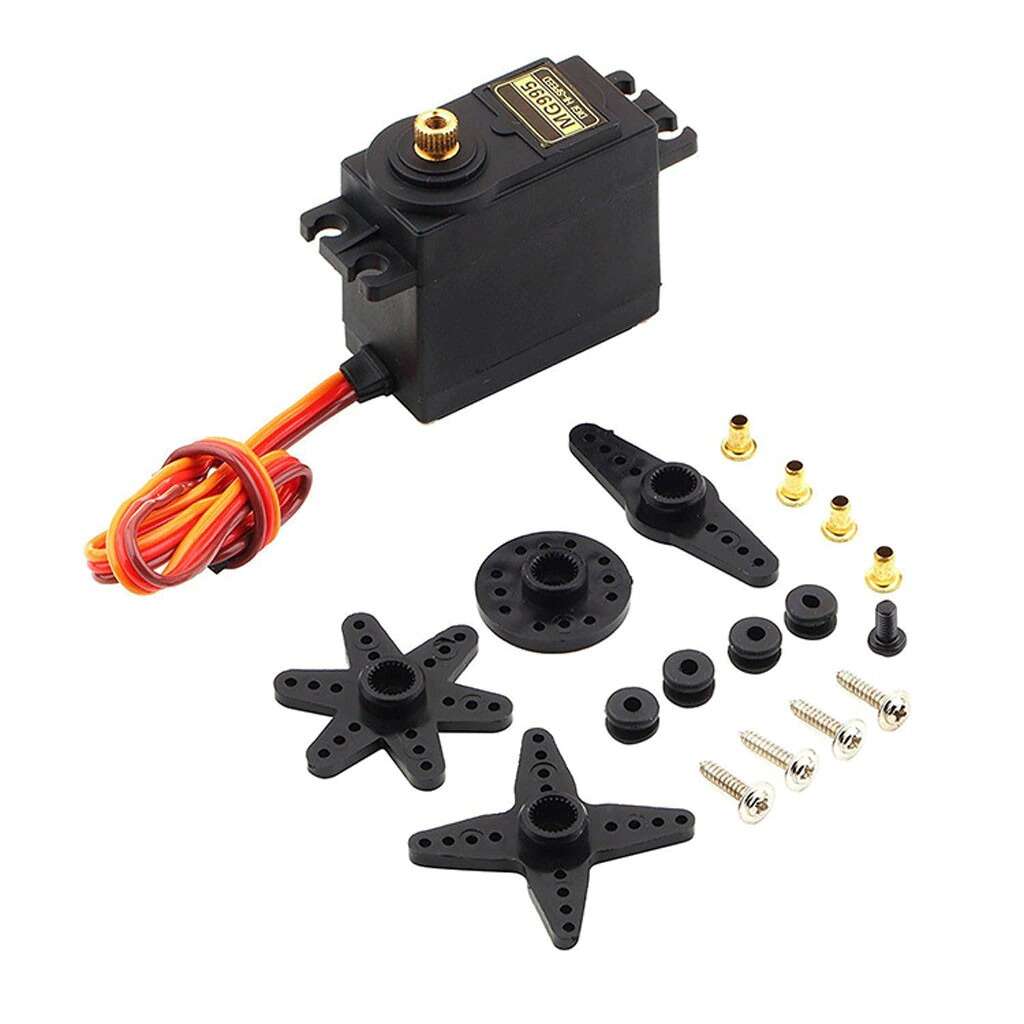

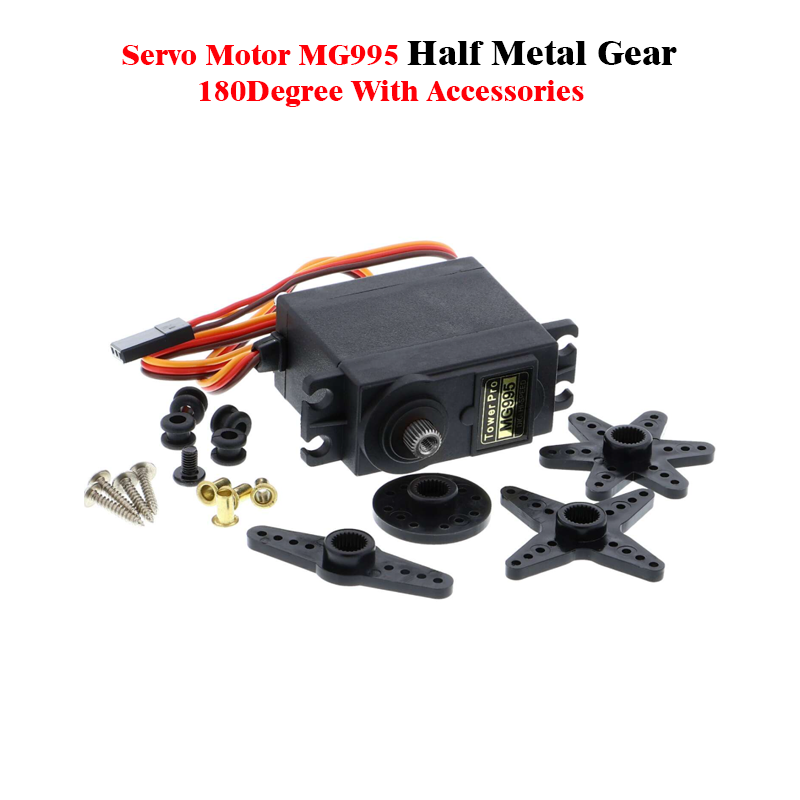

Servo Motor MG995 Half Metal Gear 180 Degree (With Accessories)

MG995 Features and Electrical Characteristics

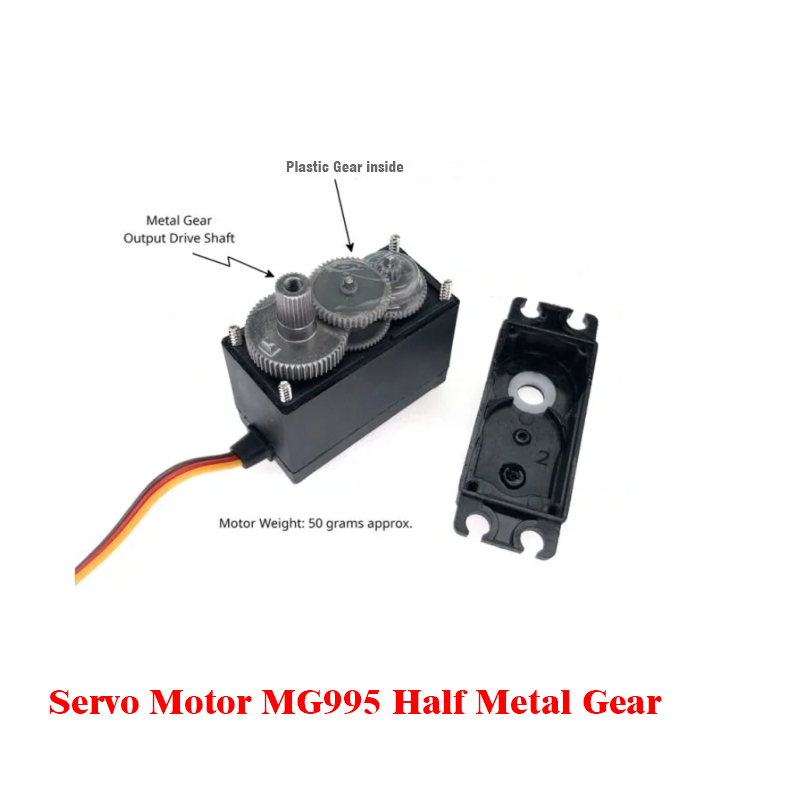

• Gear Type: Half Metal
• High-speed rotation for quick response
• Fast control response
• Constant torque throughout the servo travel range
• Excellent holding power
• Operating voltage range: 4.8 V to 7.2 V
• Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6v)
• Operating speed: 0.2 s/60º (4.8 V), 0.16 s/60º (6 V)
• Rotational degree: 180º
• Dead band width: 5 μs
• Operating temperature range: 0ºC to +55ºC
• Current draw at idle: 10mA
• No load operating current draw: 170mA
• Current at maximum load: 1200mA

MG995 Servo Motor Overview

Since MG995 is a servo motor providing precise rotation over the 180º range its applications are many and a few are stated below

• The servo is suited for designing robotic arms in which the wear and tear of the motor is high. Being Half metal geared, the servo has a long life and can be installed on a system like a robotic arm where motor work is huge.

Applications

• Security camera
• Robotics
• Solar tracking and positioning
• Door locks and safe locks
• Hobby projects
