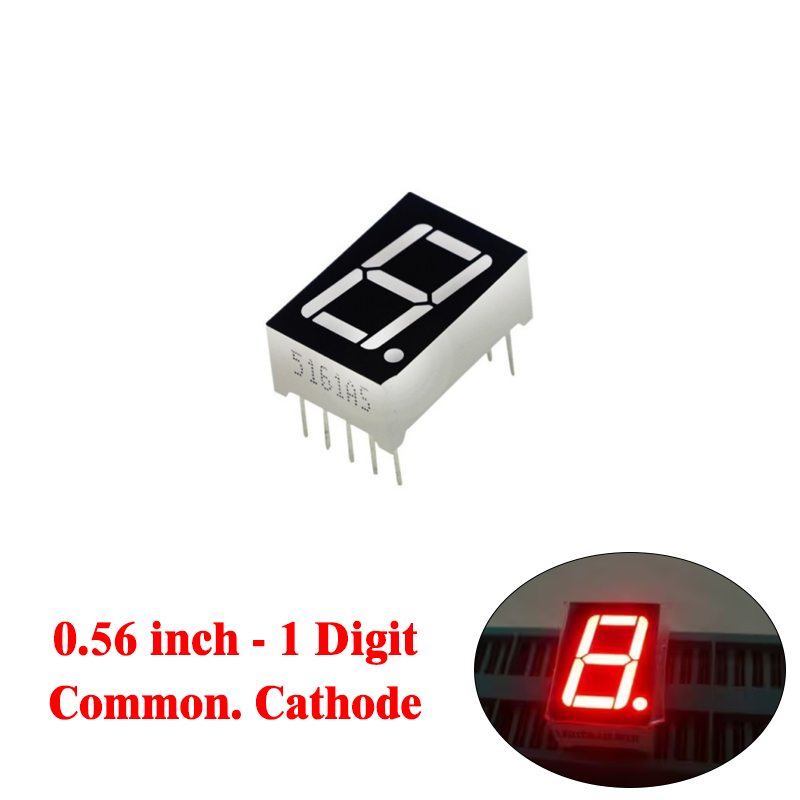

Single Digit 7 Segment (0.56 Inch) Com.Cathode - RED - 5161AS

Key Specifications and Features:

• Model: 5161AS (Common Cathode)
• Display Size: 0.56 inches (14.2 mm digit height)
• Color: Red (640 nm peak wavelength)
• Configuration: 1-Digit, 7-Segment with right-hand decimal point
• Pin Count: 10 pins (Common pins are 3 and 8)
• Forward Voltage: Typical 1.8V to 2.2V
• Forward Current: Recommended 10mA–15mA
• Applications: Digital counters, Arduino projects, instrument panels, and , advertising signs.
•  +4

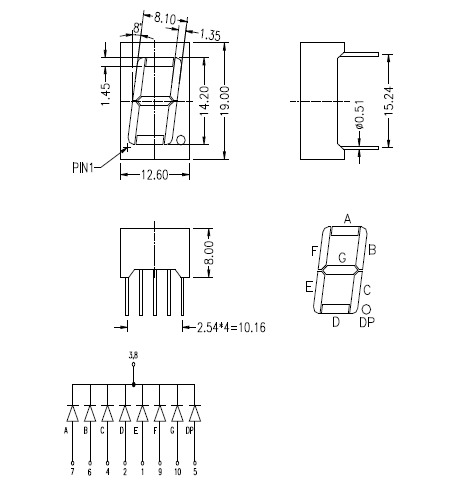

Dimensions and Design:

• Physical Size: Approximately
• .
• Appearance: White segments with a black surface for high contrast.
• Package: 10-DIP (Dual In-line Package).
