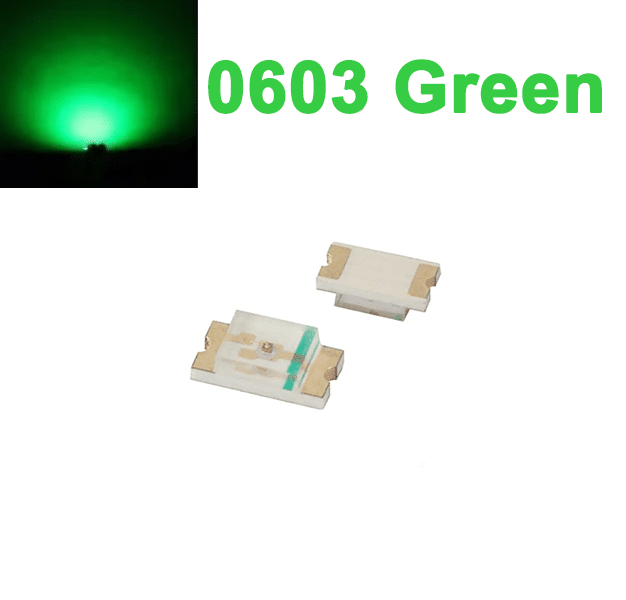

SMD LED 0603 Green (10Pcs)

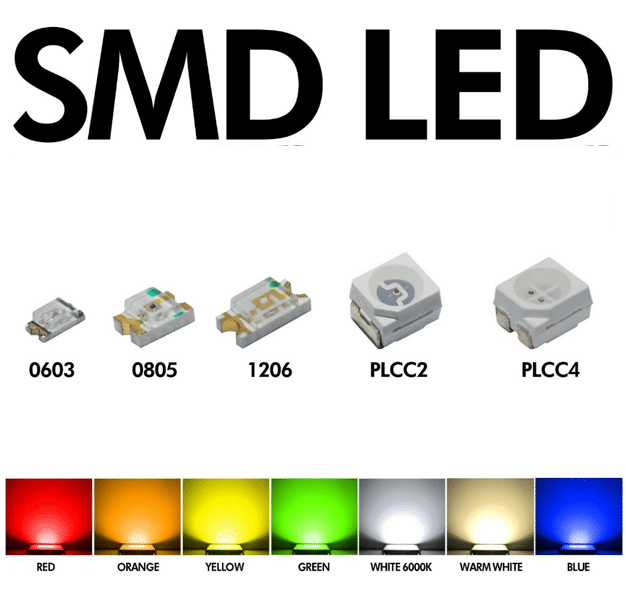

SMD 0603 LEDs

Small LED Indicators

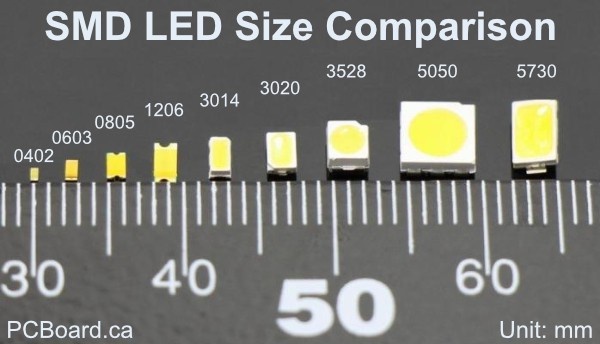

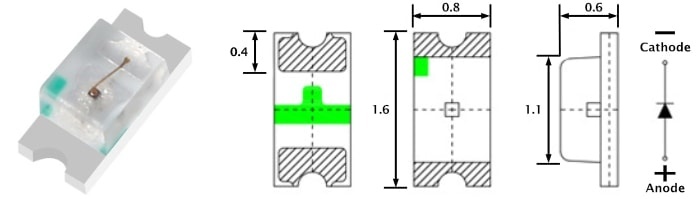

• Model: 0603 (1608 Metric) measures 1.6mm (L) x 0.8mm (W)
• Model: 0805 (2012 Metric) measures 2mm (L) x 1.25mm (W)
• Model: 1206 (3216 Metric) measures 3.2mm (L) x 1.6mm (W)

These 0603 SMD LEDs can be used in many electronics projects, including hobbyists and model builders. They are commonly used in scale-models for everything from street and house lighting to tail and indicator lights on cars and scale model trains to model boats, planes, cars, spaceships, or anything you may want to add a tiny indicator light.

Other advantages of the SMD LEDs compared to incandescent bulbs, which run hotter and burn out quickly. LEDs are also available in a wide variety of colors.

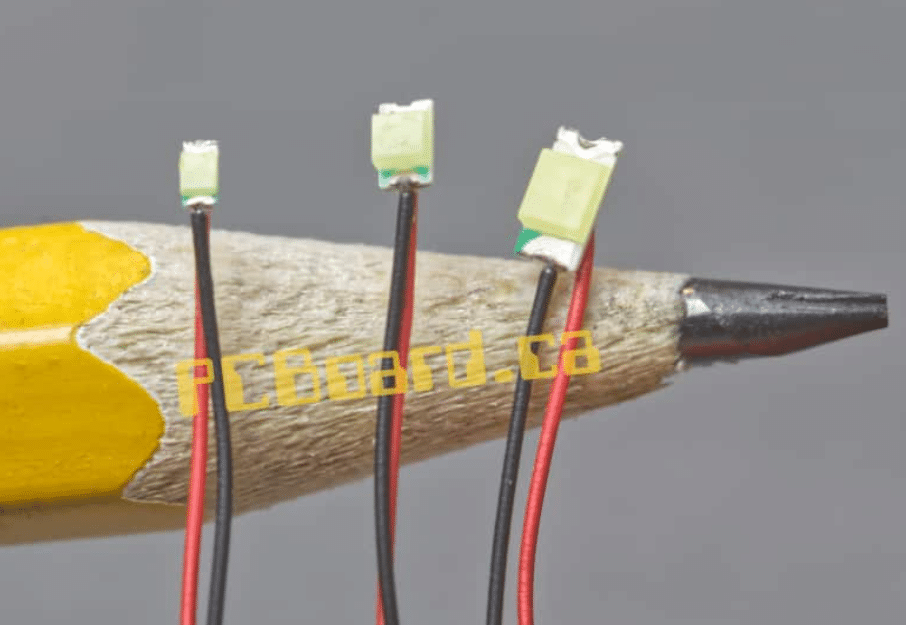

The 0603 SMD LED is very small and will require tweezers to attached connection leads to them. We also carry pre-wired SMD LEDs to save you the trouble of connecting wires to the LED.

Power Requirements

Power to the LEDs can be over a wide range, but limit the current to the devices to no more than 0.02A (20mA). More current through the LED will result in a slightly higher-intensity brightness. Our Dropping Resistor Chart below shows the different LED models and power supply voltage options and the necessary dropping resistor to achieve maximum intensity. The LEDs will function well from currents from 2mA to 20mA.

SMD 0603 LED Specifications

LED-0603-WHT-01 - White

Color Frequency: 6000K (Cool White)

Luminous Intensity: 190mcd

Viewing Angle: 130°

Forward Voltage: 3.1v

Typical Forward Current: 20mA

LED-0603-RED-01 - Red

Color Frequency: 620nm (Red)

Luminous Intensity: 100mcd

Viewing Angle: 130°

Forward Voltage: 1.9v

Typical Forward Current: 20mA

LED-0603-GRN-01 - Green

Color Frequency: 520nm (Green)

Luminous Intensity: 230mcd

Viewing Angle: 130°

Forward Voltage: 3.1v

Typical Forward Current: 20mA

LED-0603-BLU-01 - Blue

Color Frequency: 470nm (Blue)

Luminous Intensity: 90mcd

Viewing Angle: 130°

Forward Voltage: 3.1v

Typical Forward Current: 20mA

LED-0603-YEL-01 - Yellow

Color Frequency: 589nm (Yellow)

Luminous Intensity: 60mcd

Viewing Angle: 130°

Forward Voltage: 2.0v

Typical Forward Current: 20mA
