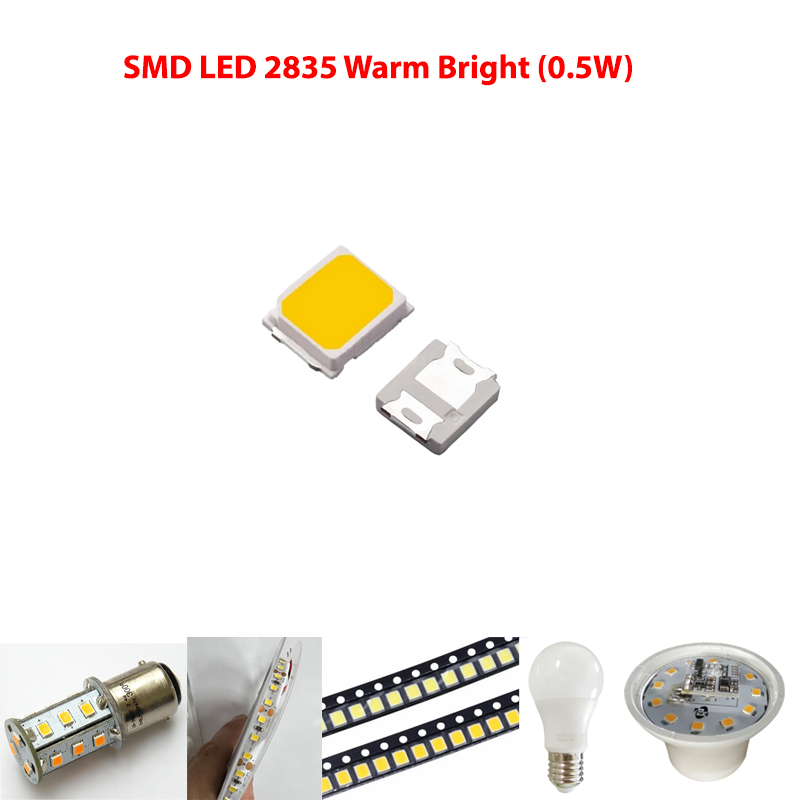

SMD LED 2835 Warm Bright (0.5W)

The Warm White 0.5W 2835 SMD LED is a medium-power surface-mount diode commonly used in high-density LED strips, panel lights, and bulbs. Its design features an exposed thermal pad that allows for better heat dissipation

Key Specifications

Standard 0.5W 2835 LEDs generally follow these technical parameters:

• Dimensions: 2.8mm x 3.5mm footprint.
• Forward Voltage (Vf): Typically 2.8V to 3.4V DC.
• Forward Current (If): Rated for 150mA for full 0.5W output.
• Luminous Flux: Produces between 45 and 75 lumens per diode, depending on the manufacturer.
• Color Temperature: Warm white variants range from 2700K to 3500K.
• Viewing Angle: Standard wide distribution of 120°.

Note on Thermal Management: While the 2835 package has improved heat dissipation, a 0.5W diode still requires a proper PCB thermal design. If you are soldering these individually, ensure the thermal pad is correctly bonded to a copper trace or heat sink to avoid reducing the LED's 50,000-hour lifespan.
