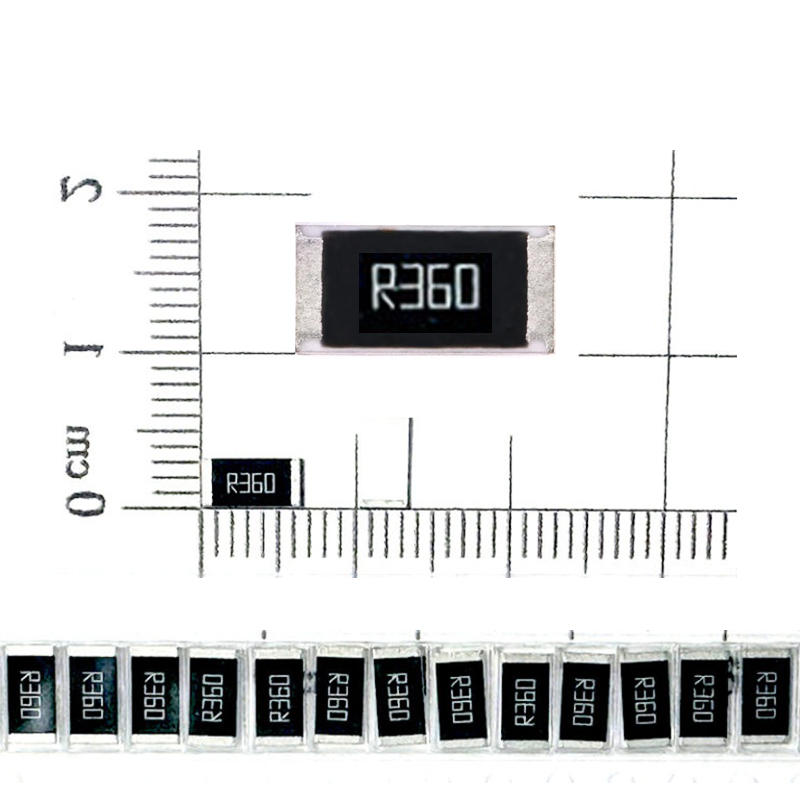

SMD Resistor 0.36ohm – (R360 – 2512)

Description

0.36 ohm SMD Resistor – 2512 Package is a type of surface mount resistor and it is a standard thick film chip resistor.

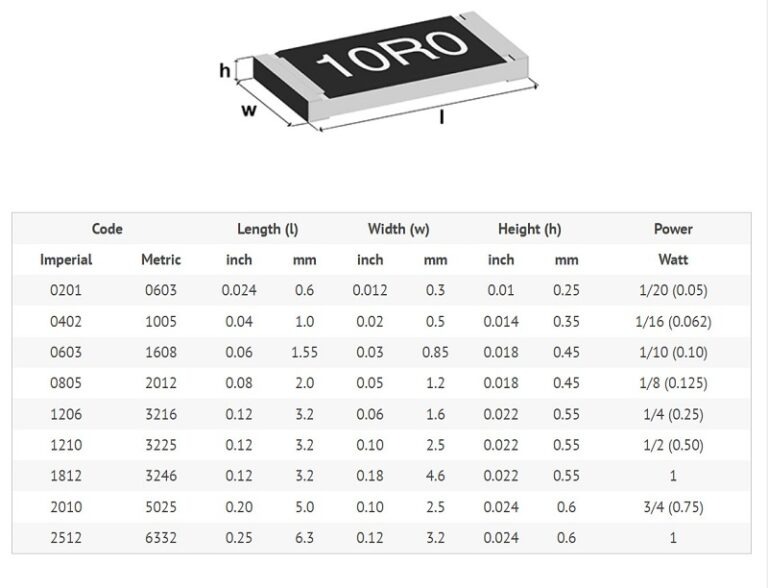

2512 package smd resistors are having bigger size than 0201, 0402, 0603, 0805, 1206, 1210, 2010 package smd resistors.

Specifications:-

• Resistance :                             0.36 ohm

• Power Rating (Watt) :               1W

• Operating Temperature :           -55 °C to +155 °C

• Package :                                 2512

• Tolerance :                               ±5%

• Voltage Rating :                        200V

Applications:-

• Consumer Electronics

• Industrial Applications

• Power Management
• Portable Devices

Package Includes:-

1 x 0.36 ohm 2512 Package 1W SMD Resistor 5% Tolerance
