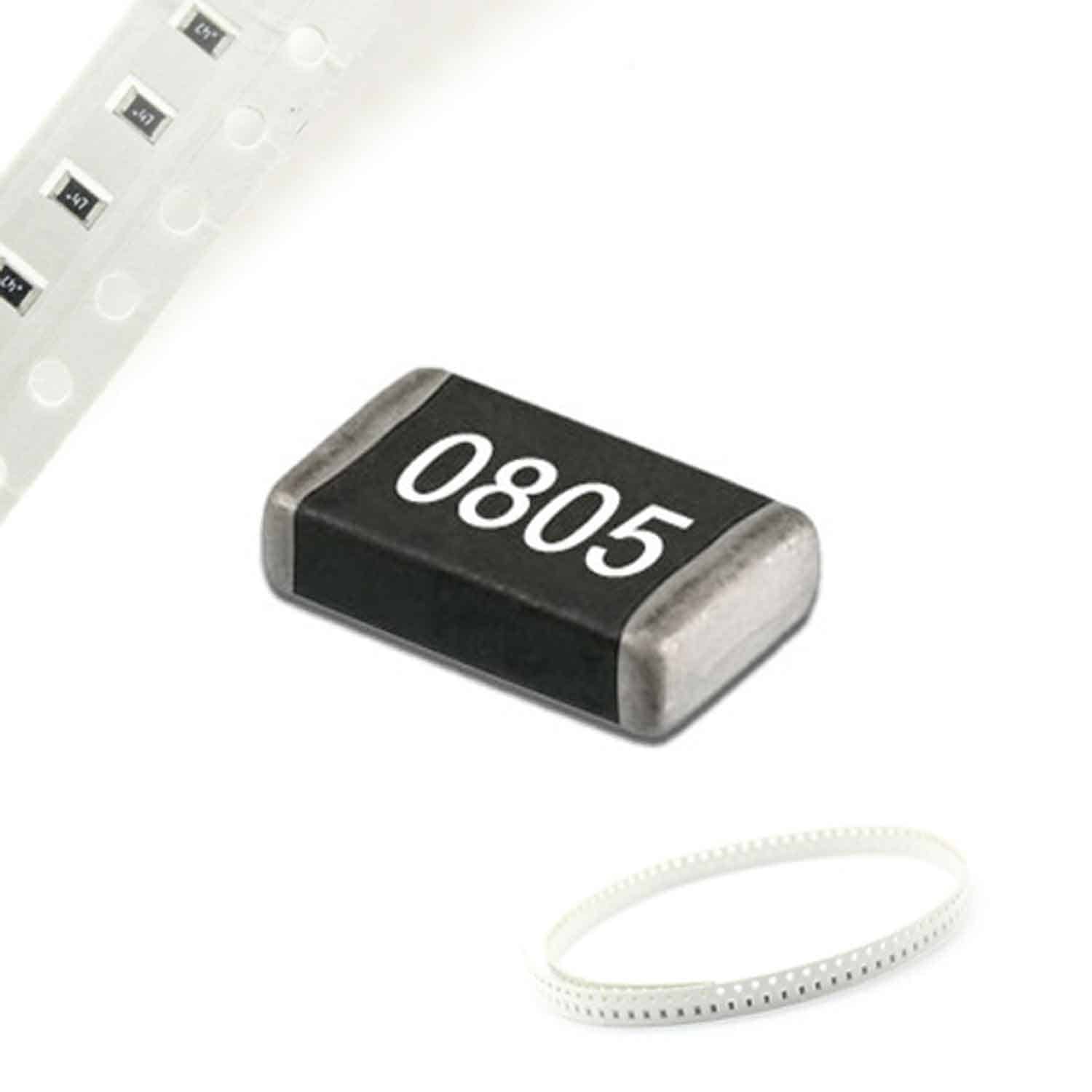

SMD Resistor 10ohm (100) (0805) (10pcs)

SMD Resistor 10Ω (100) OHM (0805) (10pcs)

The SMD Resistor 10Ω (100) OHM (0805) is a surface-mount device (SMD) resistor with a resistance value of 10 ohms (10Ω). It is designed in the 0805 package size, making it compact and suitable for high-density PCB designs. This particular resistor is supplied in packs of 10 pieces, ideal for small projects, repairs, or prototypes.

Key Features:

1. Resistance Value:

• 10Ω (10 ohms).
• The "100" code follows the 3-digit resistor code:
• 10 represents the base value (10).
• 0 is the multiplier (10⁰), so the resistance value is 10 × 10⁰ = 10Ω.

1. Package Size:

• 0805: The 0805 package dimensions are 0.08" x 0.05" (2.0mm x 1.25mm), which is compact and commonly used in modern, high-density electronic circuits where space efficiency is critical.

1. Quantity:

• Supplied in packs of 10 pieces, which is convenient for small-scale projects, repairs, or prototyping.

1. Tolerance:

• Typically ±5%. This means that the actual resistance may vary by up to 5% from the nominal value. Some manufacturers may offer ±1% tolerance for greater precision, depending on the specific application.

1. Power Rating:

• 0.125W (1/8 watt), which is typical for 0805 resistors. It's important to ensure that the power rating matches the requirements of your specific circuit to avoid overheating or failure.

1. Composition:

• Made from materials such as metal oxide, carbon film, or thick film, ensuring stable performance and long-lasting reliability.
