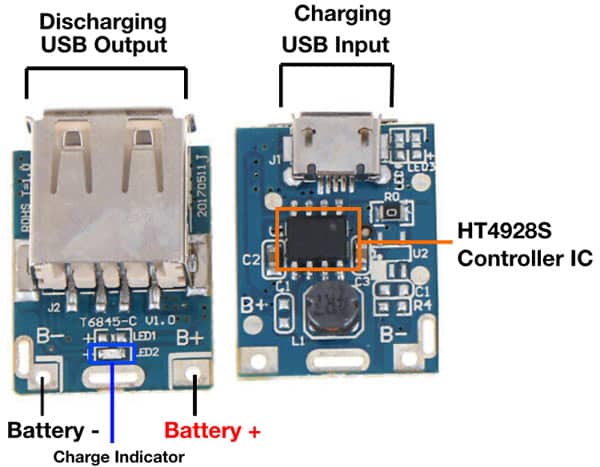

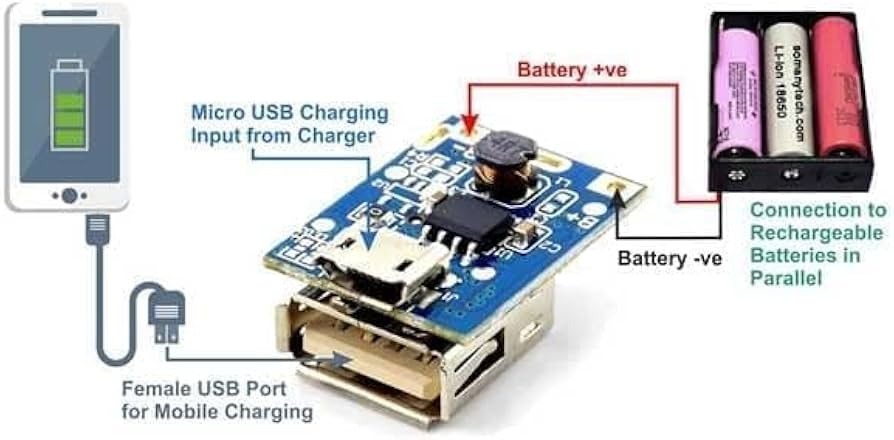

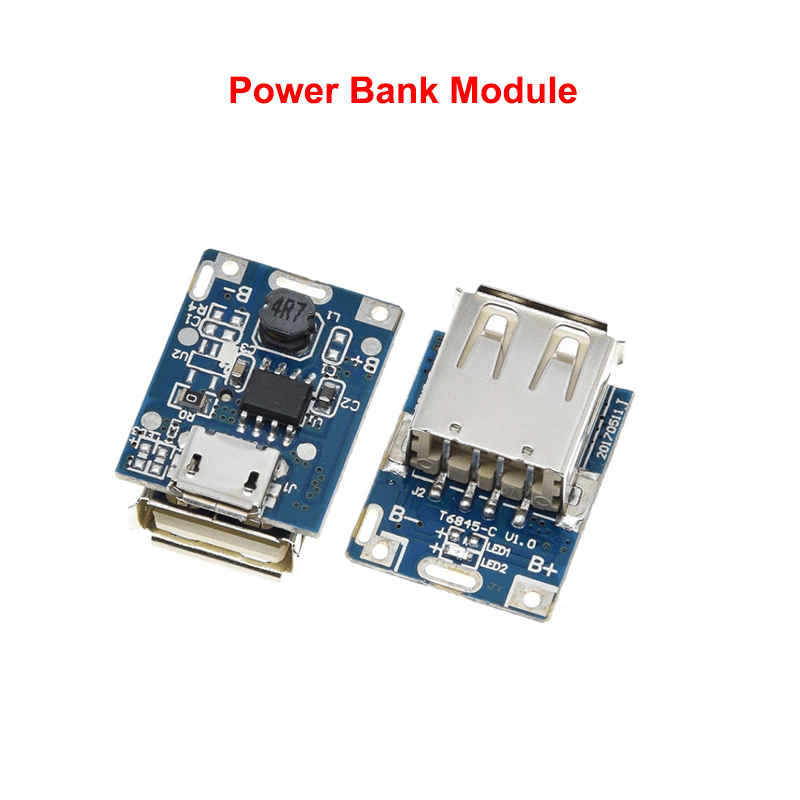

Step Up Power Module 5V For Lithium Battery Charging Protection Board USB For DIY Power Bank

Product Introduction:

1.Input Voltage:3.7V~5.5V

2.Charging Current:1A(max)

3.Output Current:1A(max)

4.Output voltage:5V

5.BAT Discharging Stop Voltage:2.9V

6.Discharging Efficiency:85%(input 3.7V output 5V/1A)

Features:

1.Charging and discharging indication

2.Internally installed charging and discharging power MOS

3.Preset 4.2V charging voltage, precision ±1%

4.Max 8uA standby current

5.Integration charging management and discharging management

6.Intelligent temperature control and overtemperature protection

7.Integration output overvoltage protection,short coircuit protection,overload protection

8.Integration overcharging and overdischarging protection

9.Support trickle mode and zero voltage charging

When charging :red light flashing

Full charged :red light light for a long time
