Strain Gauge Bending Sensor Module Y3 Weighing Amplifier Module

Description

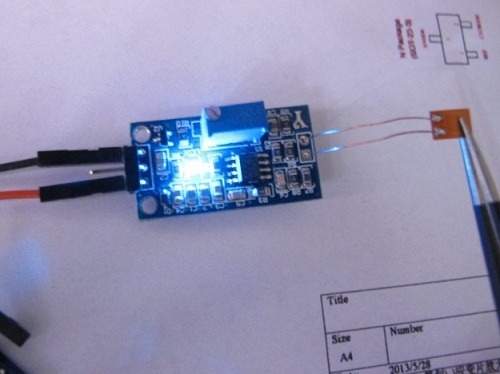

This is a Strain Gauge Bending Sensor Module Y3 Weighing Amplifier Module. A strain gauge is a device used to measure strain on an object. This strain gauge module uses the strain gauge BF350-3AA, it has an onboard amplifier and potentiometer to adjust the measured results. A Strain gauge is a sensor whose resistance varies with applied force; It converts force, pressure, tension, weight, etc., into a change in electrical resistance which can then be measured A strain gauge works on the principle of electrical conductance and its dependence on the conductors geometry. Whenever a conductor is stretched within the limits of its elasticity, it doesn’t break but, gets narrower and longer.

Specification

• Working Voltage: 5VDC
• Analog Output 0~3.5VDC
• Potentiometer to adjust the zero point;
• Dimension: 32mm X 17mm
• Gain: 1000
