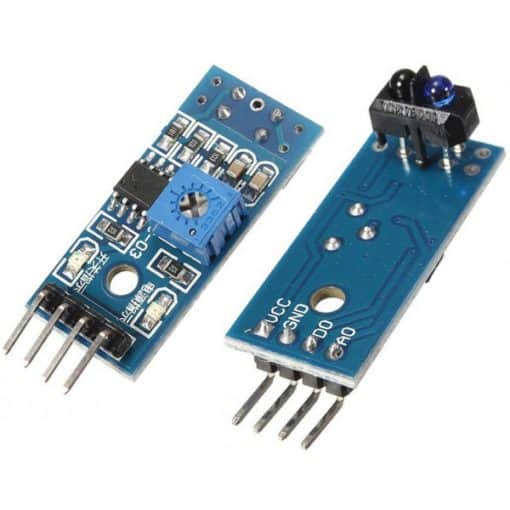

TCRT5000 Tracking Line Follower Sensor

Features:

• Integrated Design: Combines an infrared emitter and a phototransistor in a single package, minimizing external component requirements.​
• Visible Light Blocking: Designed with a housing that blocks visible light to reduce interference from ambient lighting conditions.​
• Adjustable Detection Range: Effective sensing range from 0.2 mm to 15 mm, suitable for various proximity detection tasks.​
• Compact Form Factor: Package dimensions of 10.2 mm x 5.8 mm x 7 mm, facilitating easy integration into space-constrained designs.​
• Mounting Flexibility: Available in standard and long-lead versions (TCRT5000L), offering versatility for different mounting requirements.​

Specifications:

• TCRT5000 IR reflex sensors
• Detecting the reflected distance: 1mm ~ 25mm applicable
• Sensitive to black and white color surfaces
• Comparator output signal clean wave well, driving ability, than 15mA.
• with multi-turn precision potentiometer adjustable sensitivity adjustment
• The power indicator light (red) and digital switch output indicator light (green)
• Rated voltage and 3.3V-5V
• The output format: digital switching output (0 and 1)
• a fixed bolt holes for easy installation
• Small Board PCB dimensions: 3.2cm x 1.4cm
• Use wide LM393 voltage comparator

Applications:

• Line-Following Robots: Detects the contrast between the line and the surface to guide robotic movement.​
• Object Proximity Sensing: Measures the distance to objects, enabling obstacle detection and avoidance.​
• Speed Detection: Monitors the speed of rotating parts by counting interruptions in the sensor’s field.​
• Paper Positioning: Ensures accurate alignment in printers and copiers by detecting paper edges.​
• Security Systems: Detects unauthorized movement by sensing changes in reflected infrared light.​
