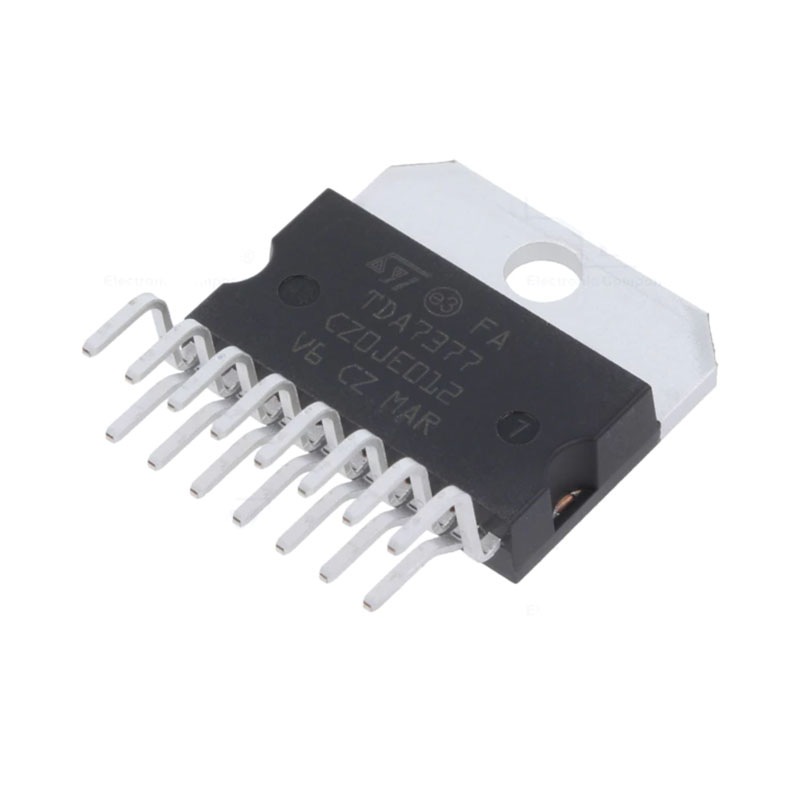

TDA7377 Audio Power Amplifier ( 2x35W )

TDA7377 Description

The TDA7377 is a new technology class AB car radio amplifier, and it is able to work either in a DUAL bridge or quad single-ended configuration.

The exclusive fully complementary structure of the output stage and the internally fixed gain guarantees the highest possible power performances with few external components. The onboard clip detector simplifies gain compression operation.

The fault diagnostics make it possible to detect mistakes during car radio set assembly and wiring in the car.

Specifications

Product Category: Audio Amplifiers

Series: TDA7377

Product: Audio Amplifiers

Class: Class-AB

Output Power: 35 W

Mounting Style: Through Hole

Type: 2-Channel Stereo or 4-Channel Stereo

Package/Case: Multiwatt-15

Audio – Load Impedance: 4 Ohms

Supply Voltage – Max: 18 V

Supply Voltage – Min: 8 V

Minimum Operating Temperature: – 40 C

Maximum Operating Temperature: + 150 C

Packaging: Tube

Number of Channels: 2 Channel

Operating Supply Voltage: 8 V to 18 V

Product Type: Audio Amplifiers TDA7377 Applications

1. Connect to speakers

Connect the two wires of the speakers to the audio output port of the power amplifier, the left channel speaker is connected to the LOUT port of the amplifier and the right channel speaker is connected to the ROUT port, the positive connects to “+”, the negative connects to “-“.

2. Connect to sound source

Use an audio cable with an end of 3.5mm stereo headphone plug and plug in the 3.5 stereo headphone jack of the amplifier.

The other end of the audio cable is connected to the audio source (such as computers, mobile phones, MP3, DVD).

3. Connecting to the power supply

1) Connect to the adapter of the power supply

Use the power supply in which the output is above DC12V3A.

Connect the adapter’s output cable to the 12V port of the power amplifier board.

The positive connects to the “+” of the port while the negative connects to “-“.

2) Connect voltage converter

Use the voltage converter in which the output is above AC12V3A.

Connect the two output cables of the converter to the 12V port of the power amplifier board.

Because the converter’s output is alternating current, it is not positive or negative.

4. Play music

Plug the power, and the blue power indicator will light up which means that the power amplifier board starts working.

You can adjust the volume knob according to their preferences.
