Terminal Block 8Pin Pluggable (Straight Pin) 5.08mm
SKU: 46582
Pick up from store
Shipping 2-3 business days
EGP 23.00
EGP 25.00
-8%
Add to Cart
Description
Description :

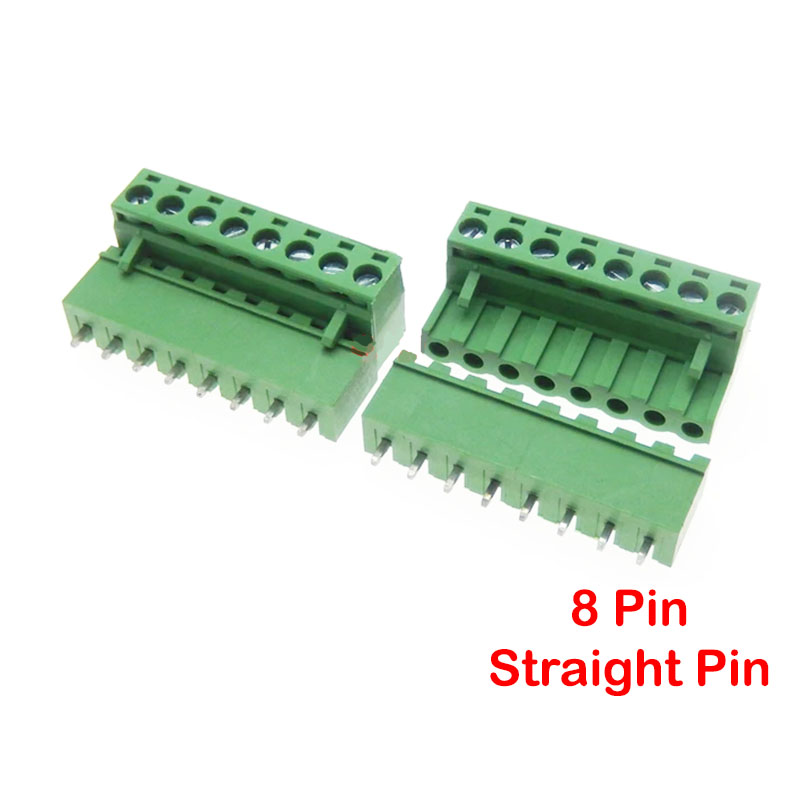

Pluggable Terminal Block Vertical 8 Pin 5.08mm Pitch KF2EDGV-5.08-8P (Straight Pin)
Feature :
1.Number of PINs Per Row: 8P
2.Pitch: 5.00mm, 5.08mm
2.Pitch: 5.00mm, 5.08mm
3.Color: Green
4.Mounting Style : Straight pin
Electrical :
1.Rated Voltage: 300V;
2.Rated Current: 15A;
3.Contact Resistance: 20mΩ;
4.Insulation Resistance: 5000MΩ@1000V;
5.Withstand Voltage: AC2500V@1Min;
2.Rated Current: 15A;
3.Contact Resistance: 20mΩ;
4.Insulation Resistance: 5000MΩ@1000V;
5.Withstand Voltage: AC2500V@1Min;
Mechanical :-
Female:
1.Screws: M2.5, Steel with Zinc-Plating;
2.Spring Leaf: Bronze with Nickel-Plating;
3.Contacts: Brass with Nickel-Plating;
4.Wire Diameter for it: 28~12AWG;
5.Torsional Moment: 0.4N.m (3.6Ib.in);
6.Stripping Length: 7~8mm;
7.Temperature: -40℃~105℃;
8.Transient Temperature: +250℃ for 5 seconds;
2.Spring Leaf: Bronze with Nickel-Plating;
3.Contacts: Brass with Nickel-Plating;
4.Wire Diameter for it: 28~12AWG;
5.Torsional Moment: 0.4N.m (3.6Ib.in);
6.Stripping Length: 7~8mm;
7.Temperature: -40℃~105℃;
8.Transient Temperature: +250℃ for 5 seconds;
Male:
1.Plastic: PA66 UL94V-0;
2.Pins: Brass with tin-plating;
