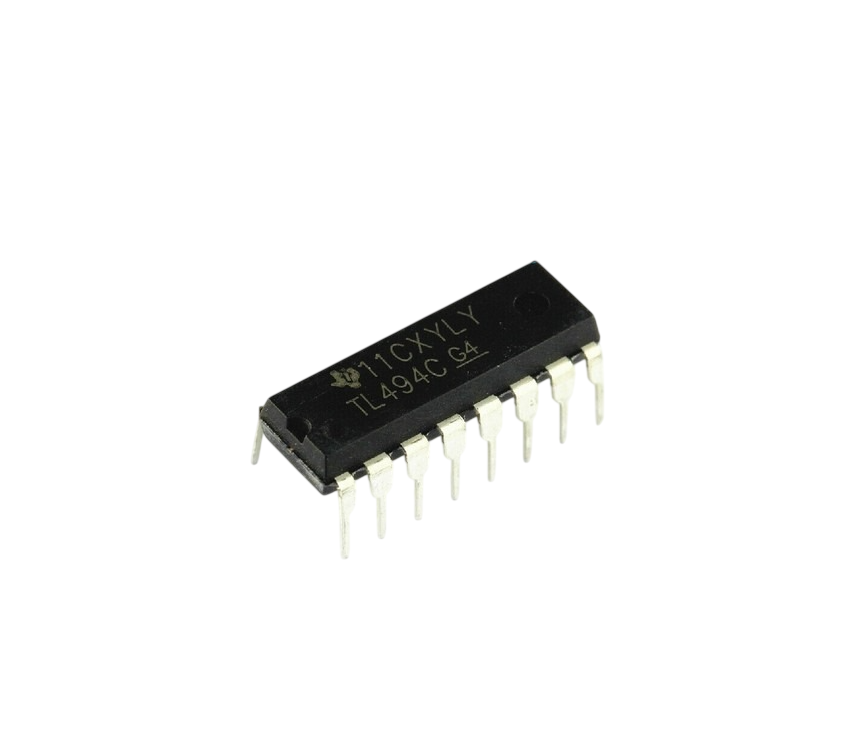

TL494 DIP-16 (Pulse Width Modulation (PWM) Control)

The TL494 is a comprehensive pulse-width-modulation (PWM) control circuit integrated onto a single chip, offering a flexible and reliable solution for designing switch-mode power supplies. Primarily intended for power-supply control, this versatile IC provides all the necessary functions to construct a PWM control circuit, allowing designers to tailor power supply systems to specific application needs.

Features

• Complete PWM Power-Control Circuitry
• Dual Error Amplifiers
• On-Chip Oscillator
• Adjustable Dead-Time Control
• Uncommitted Outputs
• Selectable Output Control
• Internal 5V Reference
• Undervoltage Lockout
• Easy Synchronization
