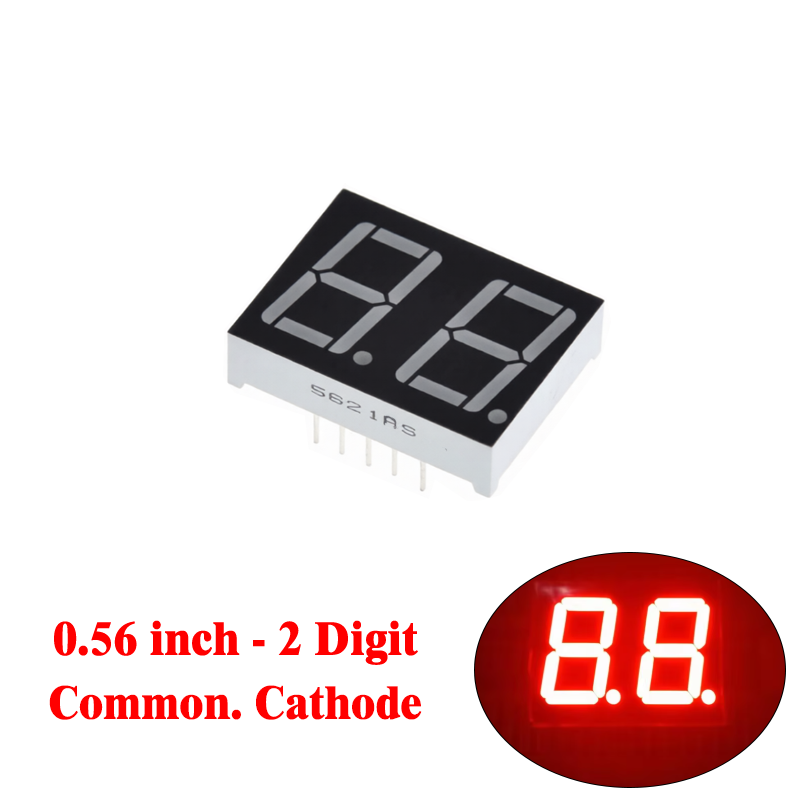

Two Digit 7 Segment (0.56 Inch) Com.Cathode - RED - 5621AS

he 5261AS 7-segment, 2-digit cathode display internally consists of 7 segment LEDs and 1 dot LED, for a total of 8 LEDs per digit. The negative (cathode) pins of these LEDs are connected together. Each digit has a separate common cathode, and the segment pins are shared. For use with microcontrollers, it is connected as if they were LEDs; simply connect a 330 or 220 ohm resistor for each segment.

The 7-segment - 2-digit Cathode 5261AS

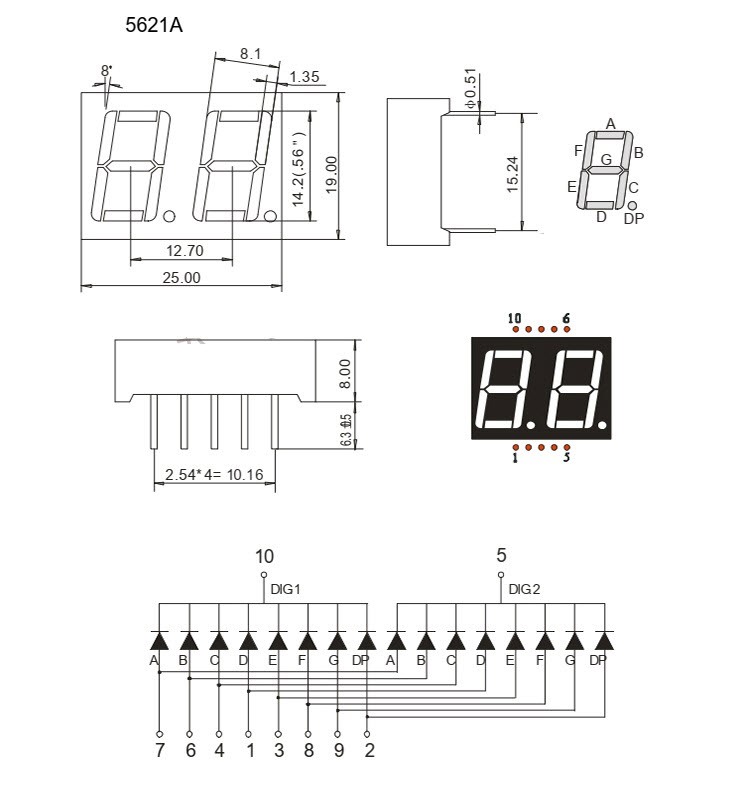

TECHNICAL SPECIFICATIONS

• Model: 5261AS
• Type: Common cathode
• Number of digits: 2
• Red
• Current per segment: 20 mA
• Digit size: 0.56" (14.2 mm)
• Module size: 25x19x8 mm
• Weight: 4g
