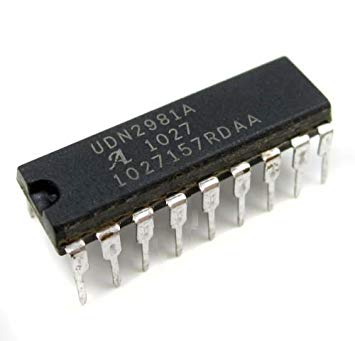

UDN 2981A (8-Channel Source Drivers)

Description: Recommended for high-side switching applications that benefit from separate logic and load grounds, these devices encompass load supply voltages to 80 V and output currents to -500 mA. These 8-channel source drivers are useful for interfacing between low-level logic and high-current loads. Typical loads include relays, solenoids, lamps, stepper and/or servo motors, print hammers, and LEDs.

● Output Voltage Range, V_CE:  5 V  to  50 V
● Output Current, I_OUT:  -500 mA
● Operating Temperature Range, T_A:  -20°C  to  +85°C
● Storage Temperature Range, T_S: -55°C  to  +150°C
