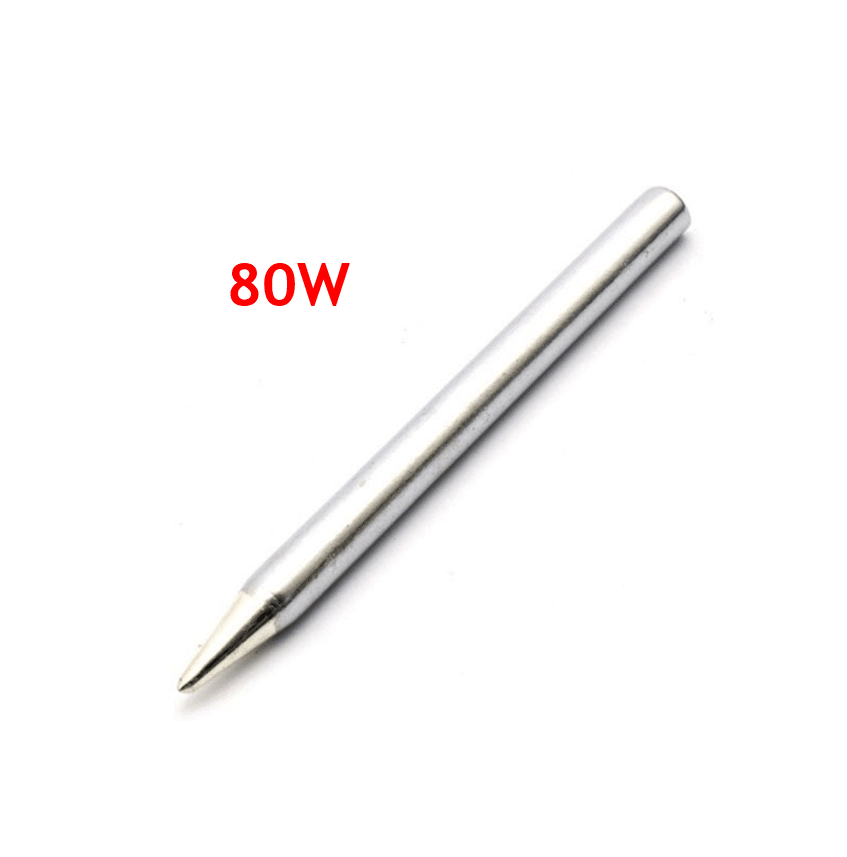

UNI-T Soldering Iron (80W) Replacement Tip (TOPLIA)

Features

• High safety and stable performance
• Quite easy to take and clean
• The copper material has been given an iron plating and the aluminum heat is applied to the copper soldering iron tip 10 to 20 times.
• The tip is precision processed, so you can perform precise work.
• High heat conduction

Replacement Procedure

• Unscrew a barrel nut.
• Take off a heater collar.
• Replace a soldering tip.
• The stainless steel collar inside of the tip can stick to a heater. When replacing a tip, be sure to take it off from a heater. To prevent an iron tip and a heating element from sticking to each other, and from damage when replacing a tip, regularly take off and on an iron tip.

Note

• Do not clean the iron tip with a cleaning pad or a rasp file.
• Soldering iron tip thermal conductivity worsens when oxides stick to it. To clean a tip, use a moist cellulose sponge.

Specifications:

• Model: B - Type
• Overall Length: 85mm
• Diameter: 6.5mm
• Tip Shape: B
