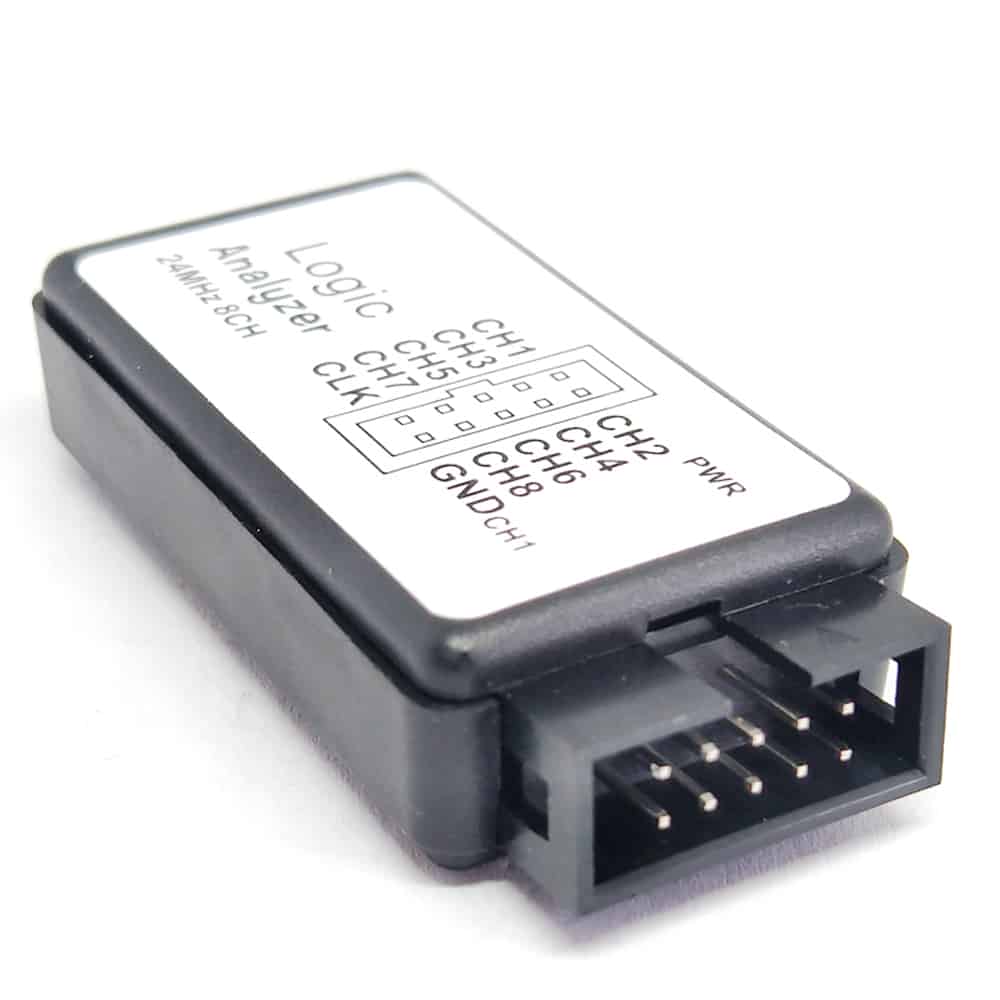

USB Logic Analyzer Debugger 24MHz 8 Channel 24M/seconds

This is a kind of fine quality USB logic analyzer, equipped with 8 channels, can gather at the same time, so as to signal analyze, such as UART. The logic for each channel sampling speed up to 24M/s. You can have a try.

Features:

8 channels can gather at the same time, so as to signal analyze, such as UART.

The logic for each channel sampling speed up to 24M/s.

General applications around 10M, enough to cope with a variety ofoccasions.

Large quantity sample collection, strong and powerful.

Equipped with overpressure protection, for safety working.

Sampling rate can be set as below: 24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.

Data upload real time, with depth collection, far from practical need.

Support WIN7(32 and 64), 2K, XP, LINUX.

Specifications:

Name: USB Logic Analyzer

Item size: 50 * 28 * 14mm / 1.97 * 1.10 * 0.55in

Item weight: 50g / 1.76ounce

Package size: 100 * 50 * 50mm / 3.94 * 1.97 * 1.97in

Package weight: 50g / 1.76ounce

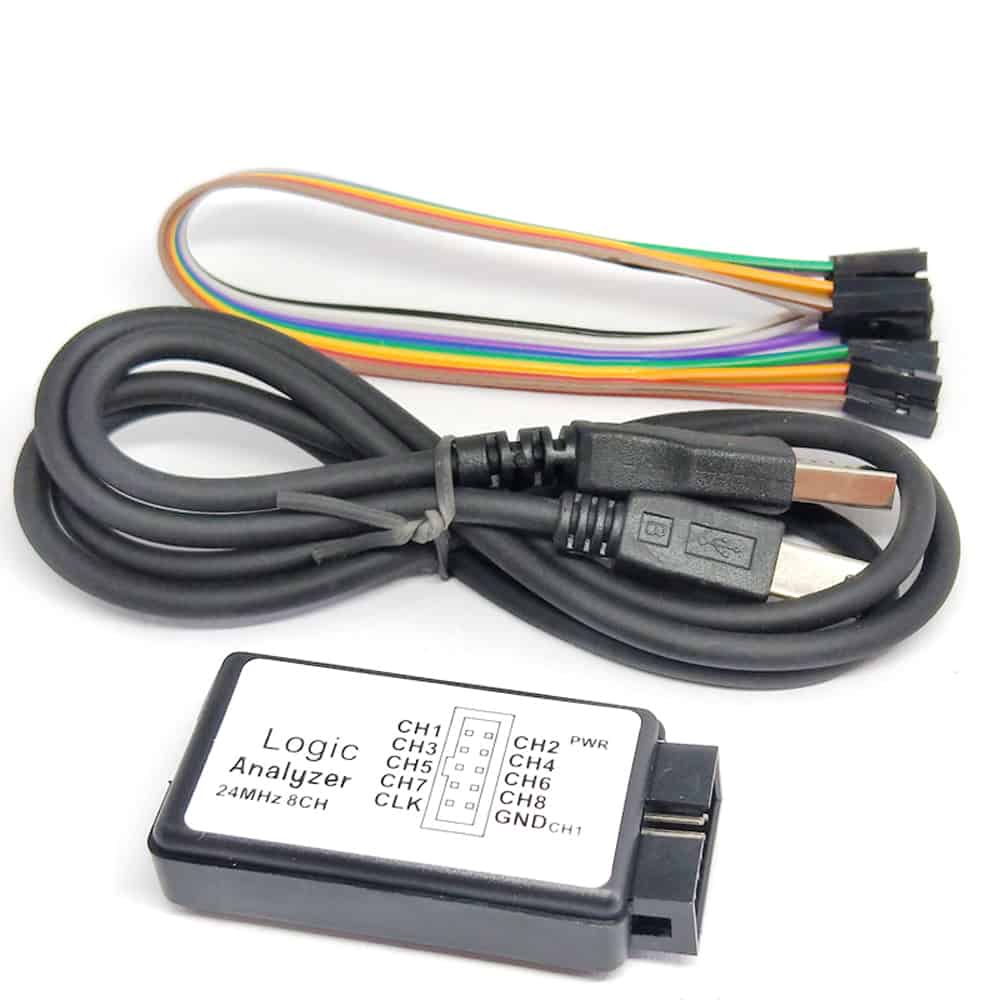

Package list:

1 * Logic Analyzer

1 * USB Cable

1 * Harness
