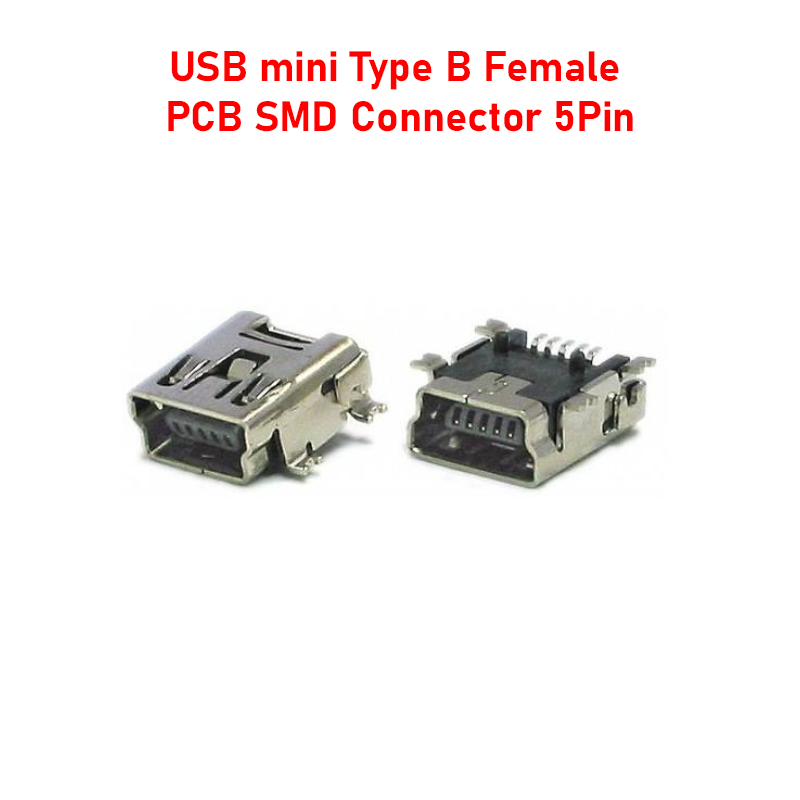

USB Mini Type B Female PCB SMD Connector 5Pin

Description:

Female Mini-B type USB connector with 5 pins and surface mount terminal connections.

Mini B type USB connectors are very often used in Storage devices, MP3 players and countless other development boards and USB devices.

It has two small plastic dots in the botton to hold the whole thing properly on PCBs, 4 side fins are also soldered on board.

This is a standard USB connector and PCB footprint is commonly found in all the major PCB CAD software libraries.

Specifications

Current Rating – Power (Max) 1A

Standard USB 2.0

Number of Ports 1

Mounting Style Surface Mount

Number of Contacts 5P

Gender Female

Connector Type Mini-B
