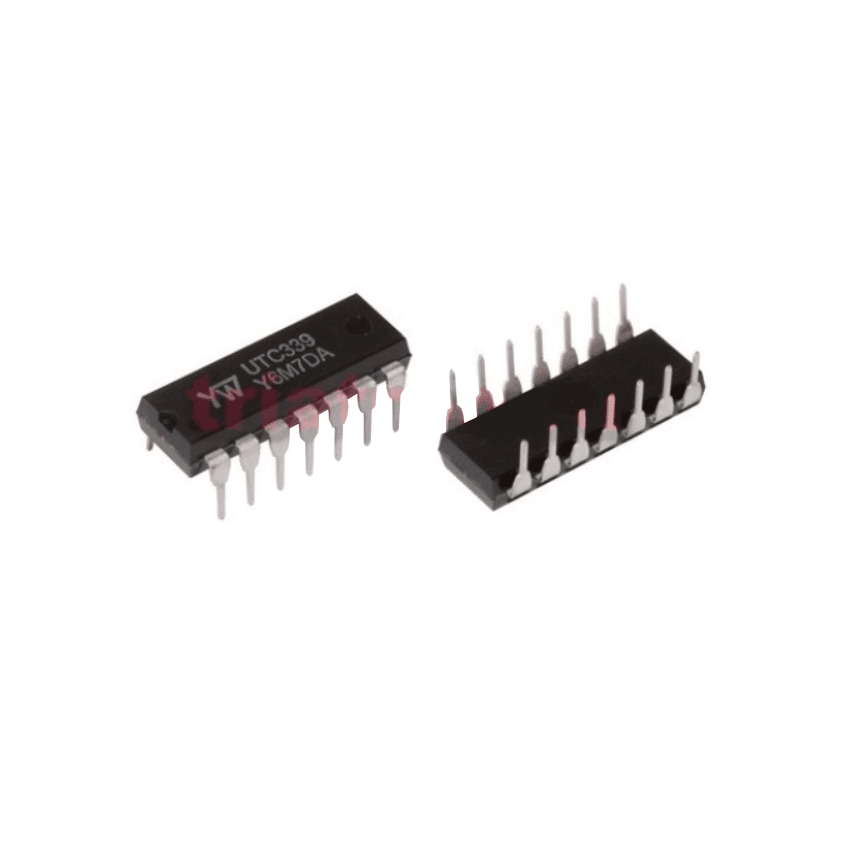

UTC339 (Quad Differential Comparator IC)
In Stock
In Stock
Add to WishlistRemove from Wishlist
CompareAdd to Wishlist
Description
Description
The UTC339 consists of four independent voltage comparators designed specifically to operate from a single power supply over a wide voltage range.
Features
- Single or dual supply operation
- Wide operating supply range(Vcc=2V~36V)
- Input common-mode voltage includes ground
- Low supply current drain ICC=0.8mA(Typical)
- Open collector outputs for wired and connection
- Low input bias current Ibias=25nA(Typical)
- Low output saturation voltage
- Output compatible with TTL ,DTL, and CMOS logic system
Absolute Maximum Ratings(Ta=25°C )
| Characteristic | Symbol | Value | Unit |
| Supply Voltage | Vcc | ±18 OR 36 | V |
| Differential input voltage | VIDiff) | 36 | V |
| Input Voltage | VI | -0.3~36V | V |
| Power Dissipation | Pd | 570 | mW |
| Operating Temperature | Topr | 0 to +70 | °C |
| Storage Temperature | Tstg | -65 to 150 | °C |
Electrical Characteristics
(Vcc=5.0V, Ta=25?,All voltage referenced to GND unless otherwise specified)
| Characteristic | Symbol | Test Condition | Min | Typ. | Max | Unit |
| Input offset voltage | VIO | VCM=0 to Vcc-1.5
Vo(p)=1.4V,Rs=0 |
±1.5 | ±5.0 | mV | |
| Input offset current | IIO | ±2.3 | ±50 | nA | ||
| Input Bias current | Ib | 57 | 250 | nA | ||
| Input Common-mode voltage range | VI(R) | 0 | Vcc-
1.5 |
V | ||
| Supply Current | Icc | RL=¥ | 1.1 | 2.0 | mA | |
| Large signal Voltage Gain | GV | Vcc=15V,RL>15kW | 50 | 200 | V/mV | |
| Large signal response time | tres | Vi=TTL logic wing
Vref=1.4V,VRL=5V,RL=5.1kW |
350 | ns | ||
| Response time | tres | VRL=5V,RL=5.1kW | 1400 | ns | ||
| Output sink current | Isink | Vi(-)>1V,Vi(+)=0V,Vo(p)<1.5V | 6 | 18 | mA | |
| Output saturation voltage | Vsat | Vi(-)>1V,Vi(+)=0V,Isink=4mA | 140 | 400 | mV | |
| output leakage current | Ileakage | VI(+)=1V,VI(-)=0 | 20 | 40 | mA | |
| Differential input voltage | VI(diff) | 36 | V |
