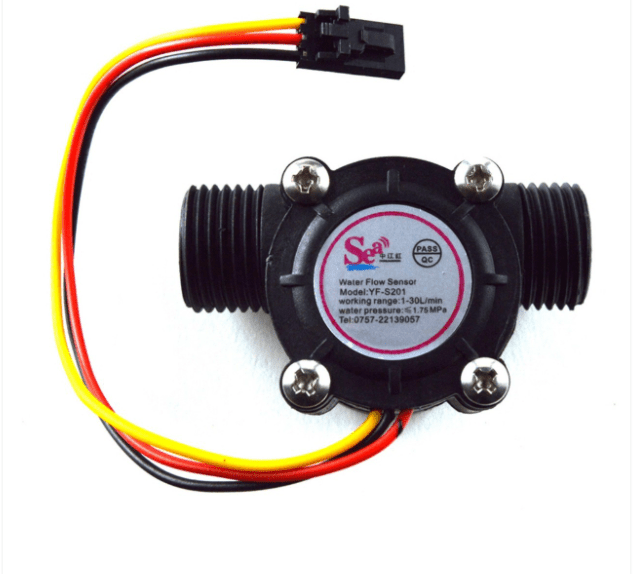

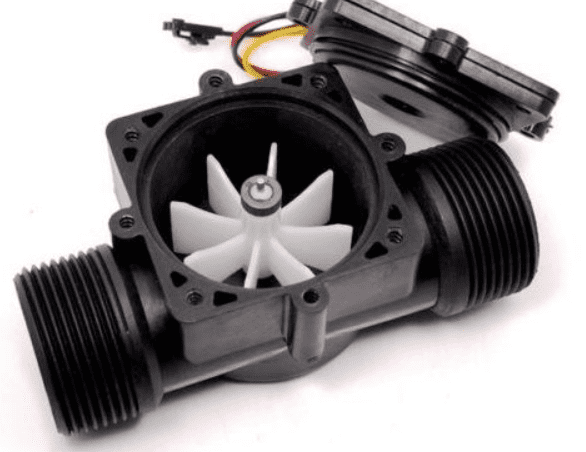

Water Flow Sensor Flowmeter (YF-S201)

Description

Model: YF-S201
Sensor Type: Hall effect
Working Voltage: 5 to 18V DC (min tested working voltage 4.5V)
Max current draw: 15mA @ 5V
Output Type: 5V TTL
Working Flow Rate: 1 to 30 Liters/Minute
Working Temperature range: -25 to +80℃
Working Humidity Range: 35%-80% RH
Accuracy: ±10%
Maximum water pressure: 2.0 MPa
Output duty cycle: 50% +-10%
Output rise time: 0.04us
Output fall time: 0.18us
Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min)
Pulses per Liter: 450
Durability: minimum 300,000 cycles
Cable length: 15cm
