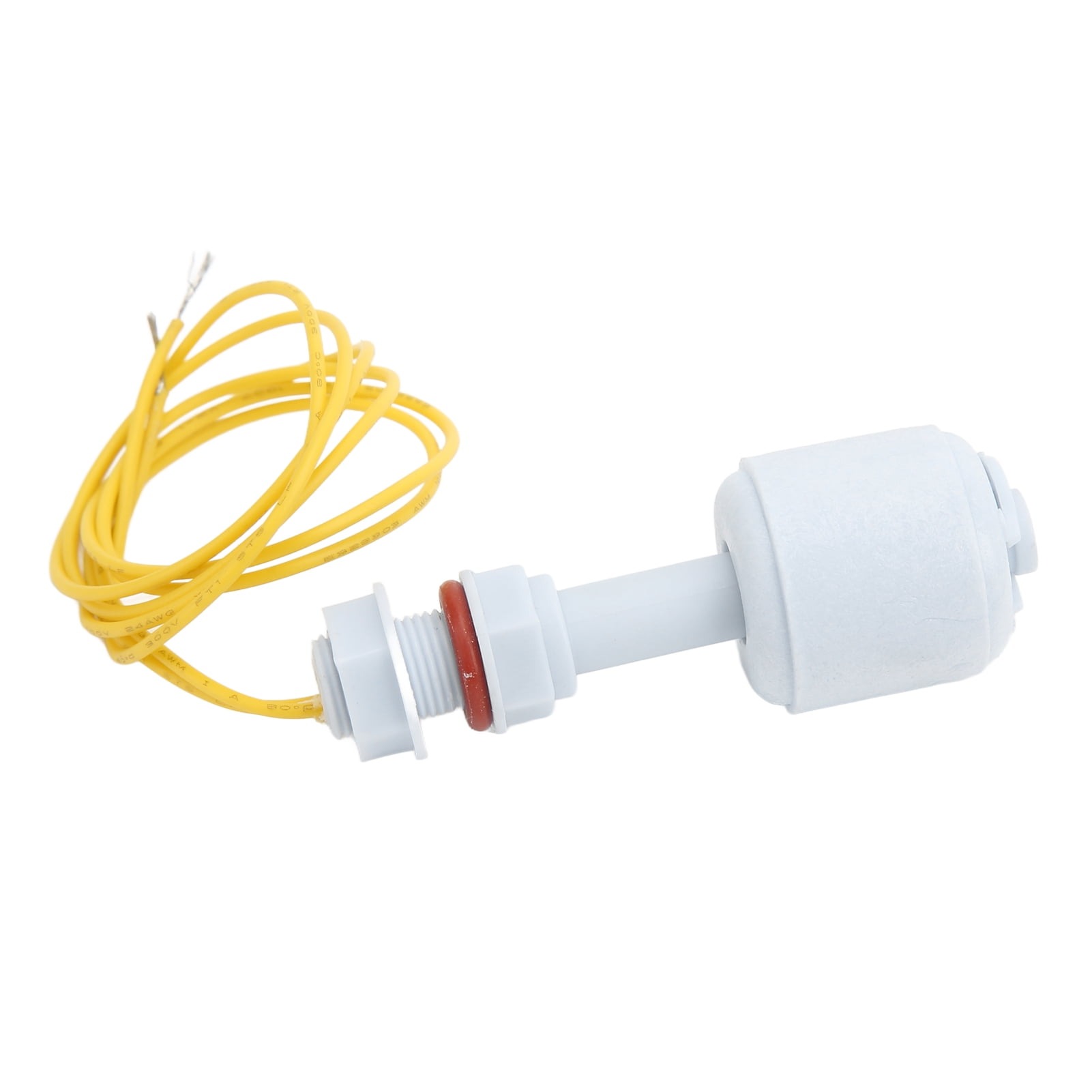

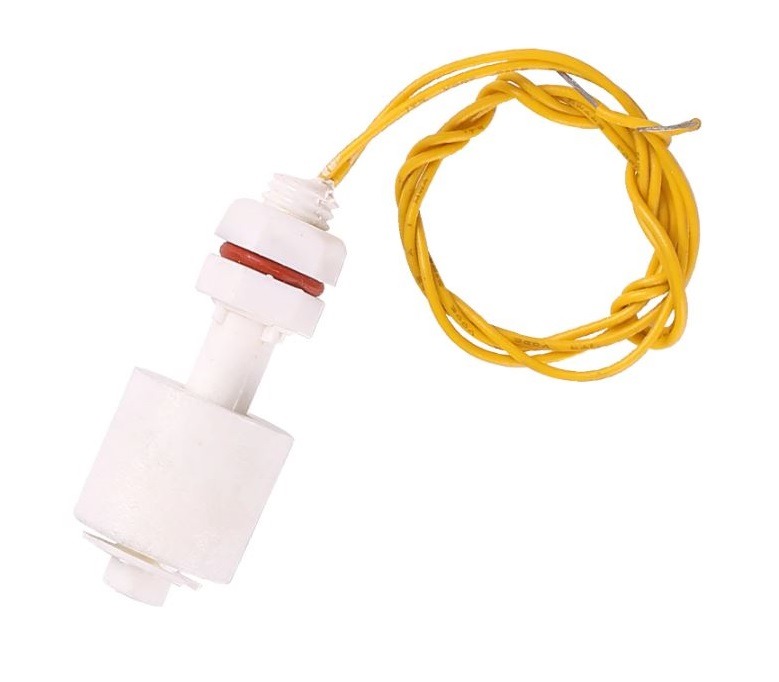

Water Level Sensor Vertical Float Switches Flow

Specification:

Product Name : Water Level Sensor

Model No. : ZP4510

Max Contact Rating : 10W Max Switching

Voltage :100V DC/AC

Max Switching Current : 0.5A

Max Breakdown Voltage : 220V DC/AC

Max Carry Current : 3A

Max Contact Resistance : 100m ohm

Temperature Rating : -10 / +85 Celsuis

Float Ball Material : P.P Float

Body Material : P.P

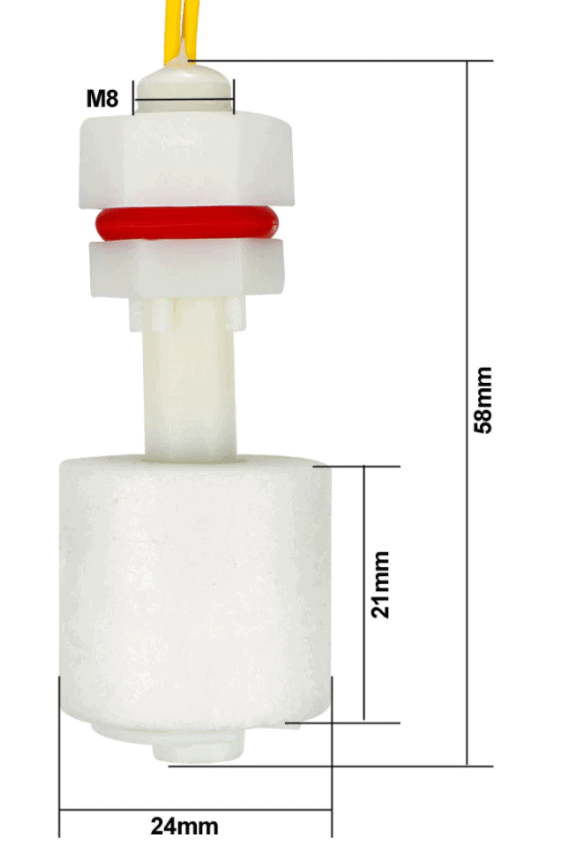

Thread Dia(Approx) : 9.5mm / 0.374"

Switch Body Size : 23.3 x 57.7mm / 0.9" x 2.27"(Max D*H)

Cable Length : 36cm / 14.2"

Color : White

Net Weight : 44g

Description:

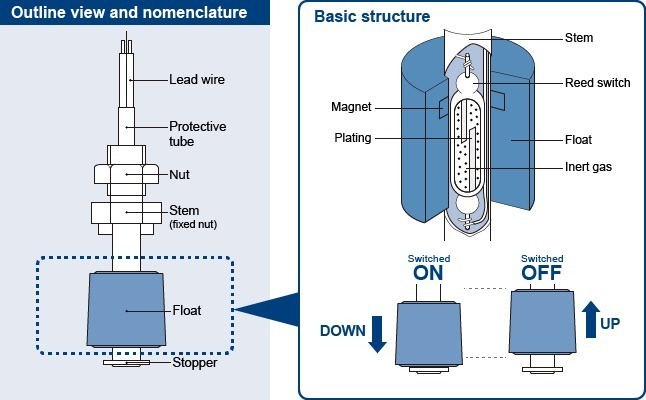

SA float switch is a device used to sense the level of liquid within a tank.

The switch may actuate a pump, an indicator, an alarm, or other device.

It can be easily converted from normally open to normally close by inverting the float.

Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.

Due to product batch is different, cable color may be different, we will random shipment.
