PCB Single Layer FR2 (10x10Cm2)

PCB Single Layer FR2 (10X10cm²)

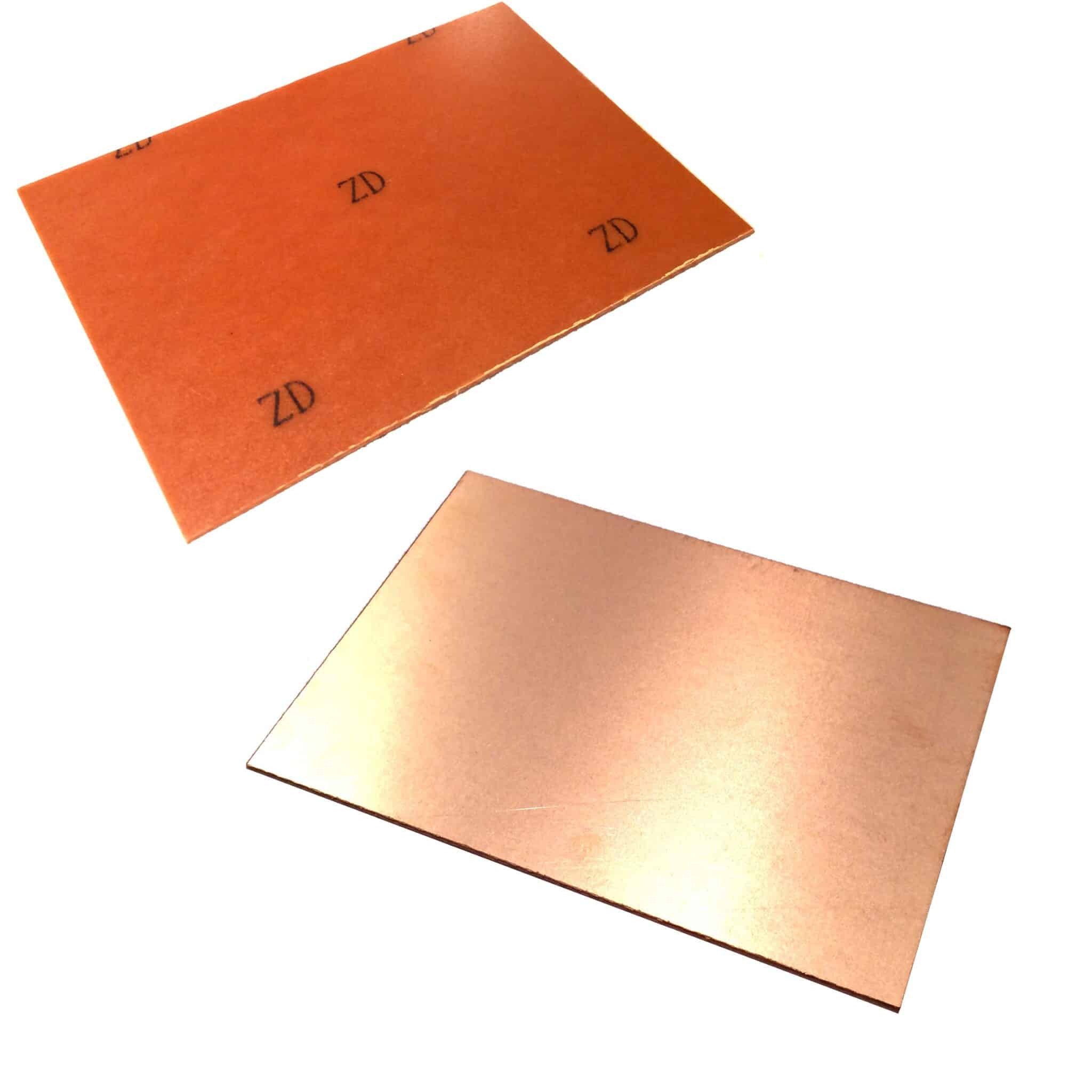

A PCB Single Layer FR2 (10X10²) refers to a single-sided printed circuit board (PCB) made from FR2 material, with a size of 10X10cm². It is typically used in various electronic and electrical applications for mounting components and establishing electrical connections on a circuit.

Key Features of PCB Single Layer FR2 (10X10²):

1. Single Layer (Single-Sided):

• A single-layer PCB, also known as a single-sided PCB, means that all of the electrical traces are located on one side of the board. Components are placed on the other side, making it a simple design compared to double-sided or multi-layer PCBs.
• This simplicity generally makes single-layer PCBs cost-effective and easy to manufacture, ideal for basic electronic projects and prototypes.

1. FR2 Material:

• FR2 stands for Flame Retardant 2, which is a type of phenolic resin-based material used as the substrate for the PCB. It is commonly used in low-cost applications.
• FR2 is generally cheaper and less durable than higher-end materials like FR4, but still provides basic mechanical strength, insulation, and flame resistance for less demanding applications.
• The FR2 material has relatively lower thermal stability and mechanical strength compared to FR4 but is sufficient for many basic electronic devices that do not require high performance or temperature tolerance.

1. Dimensions (10X10 cm²):

• The dimensions of 10 cm x 10cm refer to the size of the PCB, specifically a board that is 10 cm long and 10 cm wide. This size is relatively medium and often used for projects like consumer electronics, prototyping, and development boards.
• A 11X10cm² PCB provides ample space for placing components while maintaining a manageable form factor.

1. Single-Sided Traces:

• The single-sided PCB means there are no traces or connections on the back of the board, making it suitable for simple designs and easy assembly. However, this also means the available surface area for components and routing is limited.

1. Application Range:

• FR2 PCBs are used in low-cost consumer applications and educational projects, especially in prototyping, hobbyist electronics, and test equipment. They are often used when the performance requirements are not as stringent, and cost reduction is a priority.
