DS0088 LCD 12-18V Universal Power Supply Board Module Switch Tube 300V For LCD Display TV Maintenance
SKU: woo-15474
Pick up from store
Shipping 2-3 business days
EGP 45.00
Add to Cart
Description
-

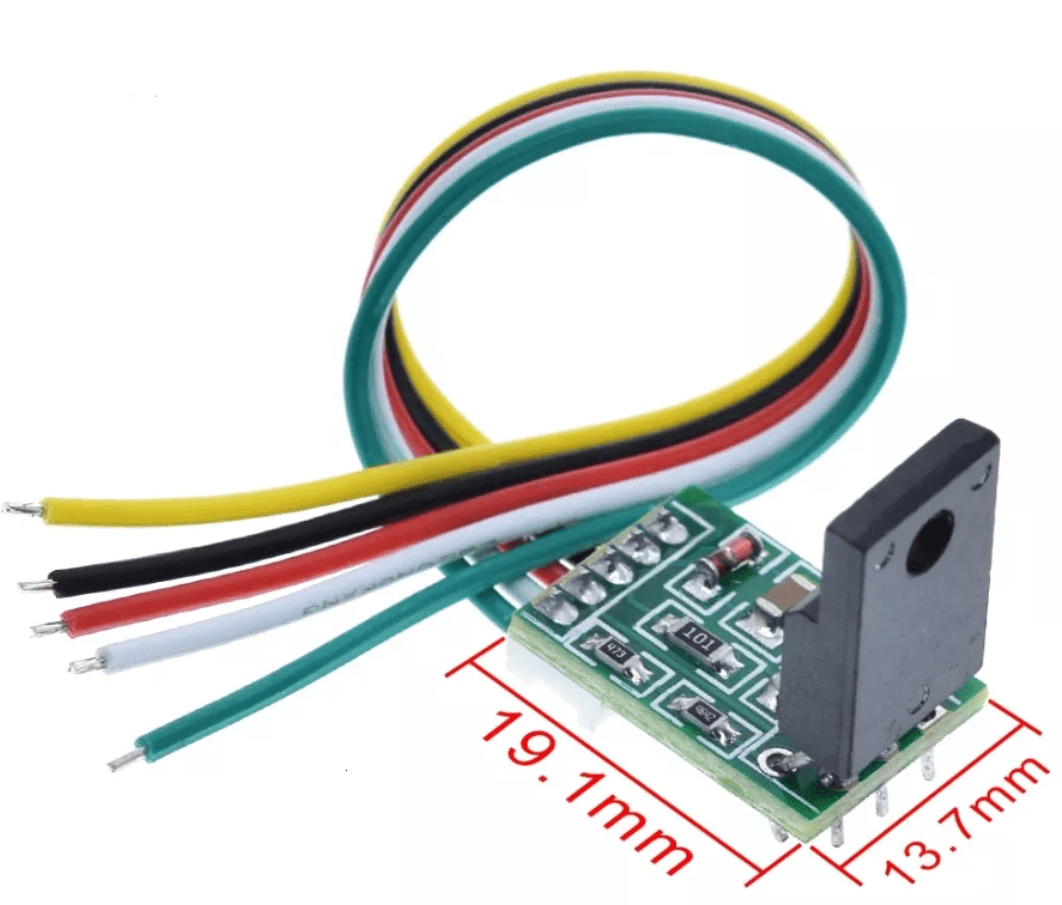

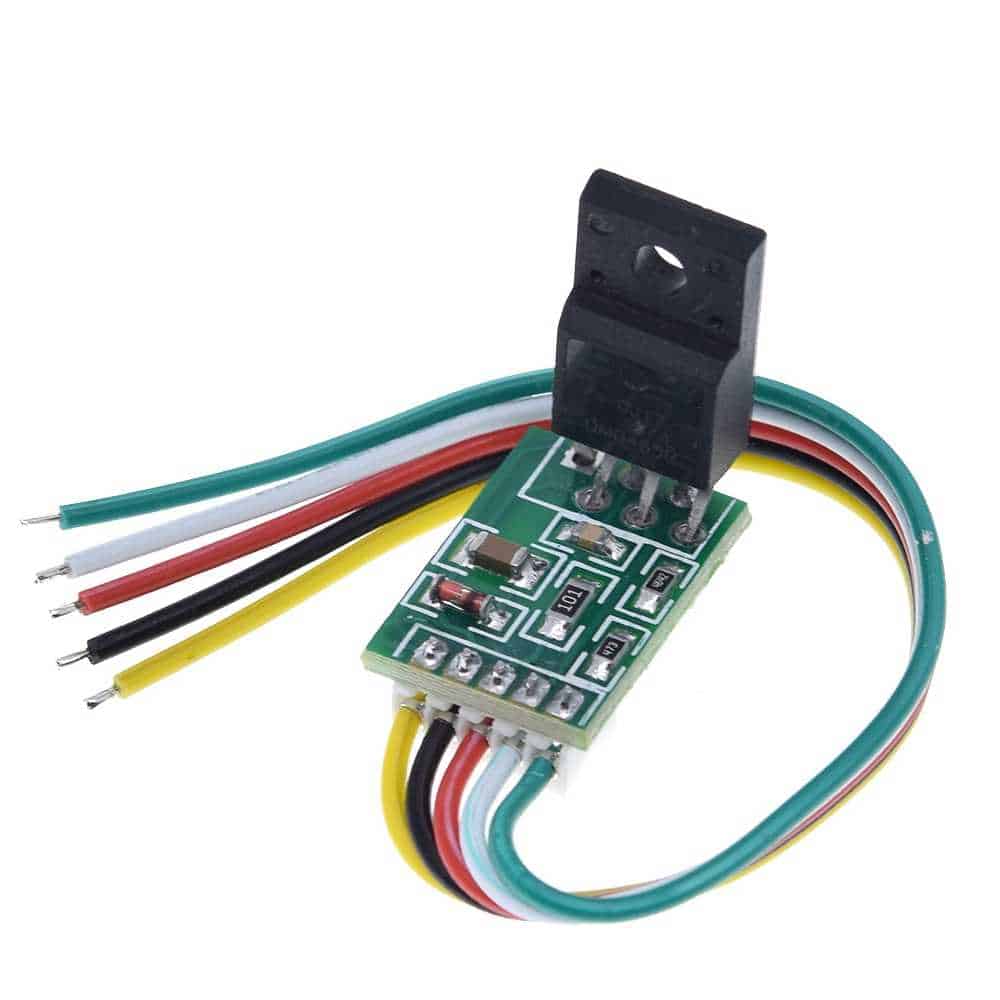

- Application: 32-inch LED LCD TV/15-21-inch LCD power module substitution
- Pin Definition
- 1 foot yellow line: DRAIN, power control terminal, connected to the original high-power MOS power supply D pole. Usually the middle foot of the power switch tube
- 2 feet black or pink wire: GND, module ground wire 300v, capacitor negative, the same line can be. Negative pole directly connected with large filter capacitor
- 3 foot red wire: VCC, module power supply terminal, connected with the positive pole of capacitor after rectification of feedback winding terminal, continuous power supply, voltage between 12-18V.4 foot white line: FB, regulated feedback, four-foot optocoupler. Make sure that the three-foot optocoupler connects the hot ground. If it is not the hot ground, the optocoupler is shortened to the hot ground. At the same time, the four-foot peripheral circuit is disconnected.
- 5 feet green line: start start start foot, connect + 300V capacitor positive pole
