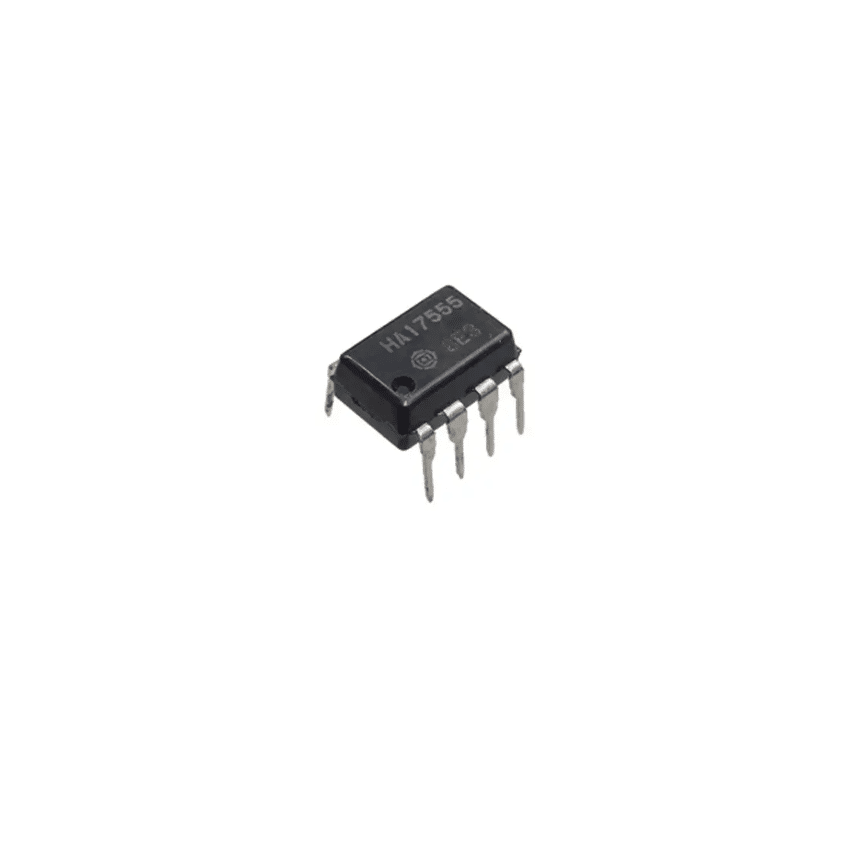

HA17555 (Precision timer IC )
SKU: 61497
Pick up from store
Shipping 2-3 business days
Description
Description:
Features:
· Mono multi vibrator can be constructed with one resistor and one capacitor.
· Astable multi vibrator can be constructed with two resistors and one capacitor.
· Delay time can be established widely from several µ seconds to several hours.
· Pulse Duty can be controlled.
· The maximum value of both sink current and source current is 200mA.
· Direct connection of output to TTL is possible.
· Temperature/delay time ratio is 50 ppm/°C (typ).
· Output is normally in the on and off states.
Application
· Delay Time Generator (Mono Multi Vibrator)
· Pulse Generator (Astable Multi Vibrator)
· Pulse Width Modulator
· Pulse Location Modulator
· Miss Pulse Detector
Specifications
| Item | Symbol | HA17555PS/FP | HA17555/F | Unit |
| Supply voltage | VCC | 18 | 18 | V |
| Discharge current | IT | 200 | 200 | mA |
| Output source current | Isource | 200 | 200 | mA |
| Output sink current | Isink | 200 | 200 | mA |
| Power dissipation*1 | PT | 600/385 | 600/385 | mW |
| Operating temperature | Topr | 20 to +75 | 20 to +70 | °C |
| Storage temperature | Tstg | 55 to +125 | 55 to +125 | °C |
Note:
1. For the HA17555/PS, This value applies up to Ta = 50°C; at temperatures above this, 8.3mW/°C derating should be applied.
For the HA17555F/FP, This value applies up to Ta = 25°C; at temperatures above this, 3.85mW/°C derating should be applied. See notes on SOP Package Usage in Reliability section.
