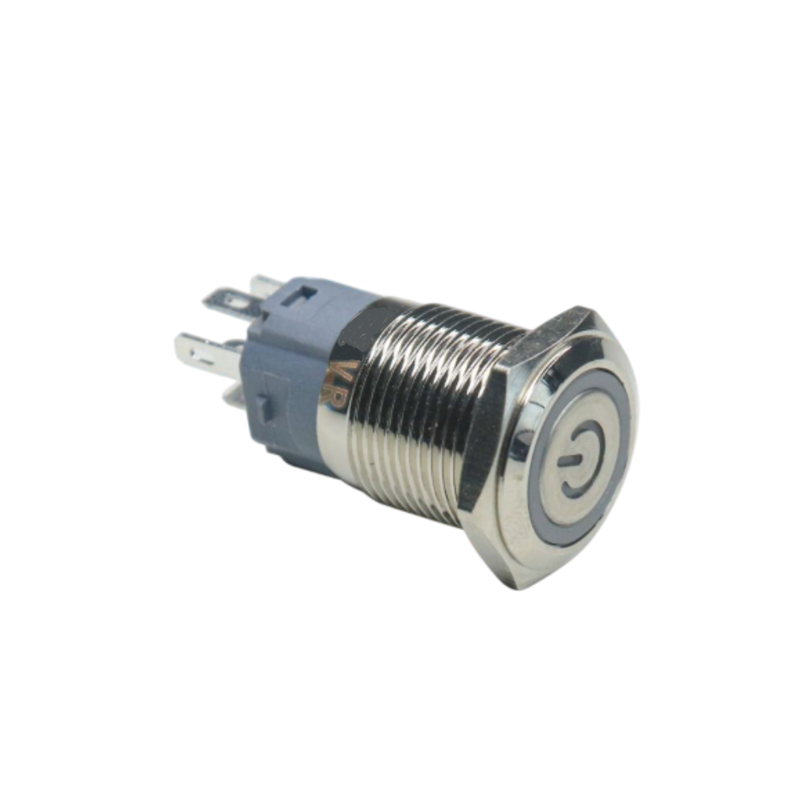

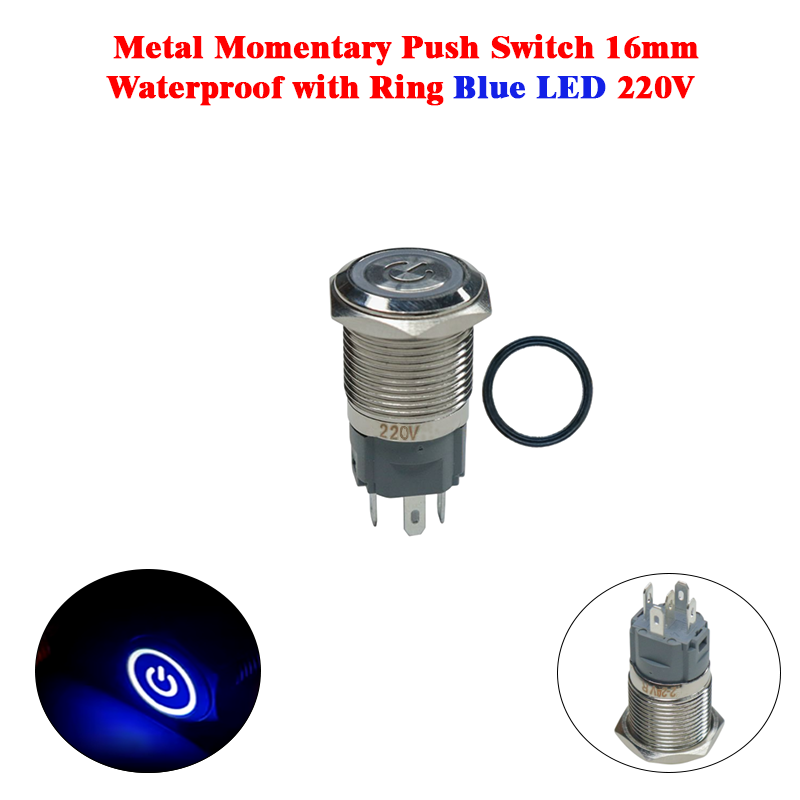

Metal Momentary Push Switch 16mm Waterproof with Ring Blue LED 220V

This 16 mm diameter waterproof metal push-button switch offers a sleek, industrial-grade control interface that marries durability with aesthetic appeal. Machined from corrosion-resistant metal, the switch body is designed for panel mounting via a 16 mm hole and features an illuminated LED ring around the button cap.

When installed in control panels, kiosks or equipment enclosures, its illuminated ring provides clear feedback of status while the momentary “press-and-release” action gives tactile control of electronic circuits.

On actuation, the internal mechanism closes the contact only while pressed, reverting when released, making it ideal for momentary on/off or signal-trigger applications.

The LED ring is driven by the appropriate voltage and glows when powered, allowing the button to serve both as an actuator and indicator. With its sealed construction, this switch is built to handle water and dust ingress suitable for exposed or harsh-environment use.

In use, the illuminated button enables a polished user interface: simply mount the switch, wire the signal contacts plus the LED supply, and the component delivers a compact, durable interface point.

Whether used in vehicles, marine enclosures, DIY electronics, or industrial machinery, the 16 mm metal push-button brings clean visuals, reliable momentary switching and waterproof robustness in one package.

Features:

• Momentary action (only active while pressed).
• LED ring illumination around the button cap.
• Waterproof and dust-resistant sealed construction (industrial-grade metal body).
• Compact 16 mm panel-mount size.
• Metal body (typically stainless or nickel-plated brass) for durability.
• ON/OFF labeling or illumination options to highlight state.
• Suitable for exposed or harsh environments thanks to protective rating.

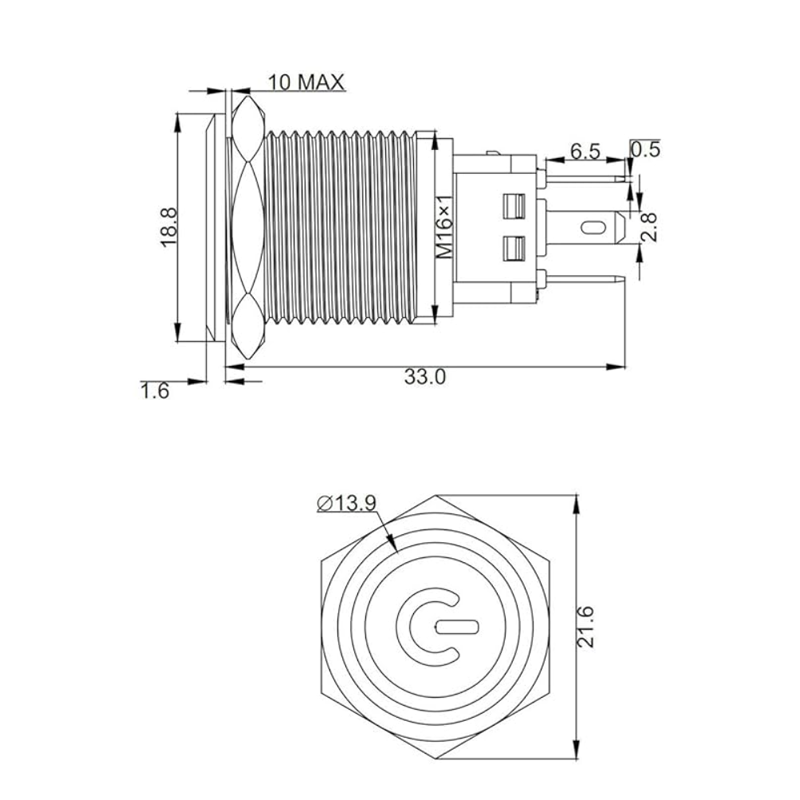

Specifications:

Cut Hole:16 mm

Mounting Type:Panel Mount

Operation Type:Push Button (Momentary)

LED Power: 220V For LED illumination

LED Color : Blue

Switch Contact Configuration:1NC + 1NO Single-pole dual-contact

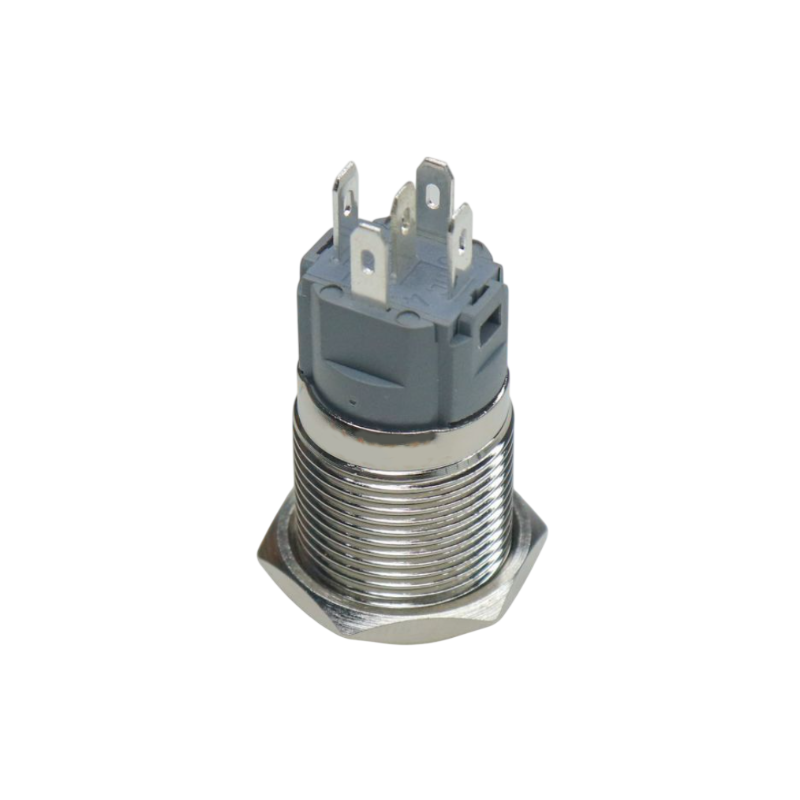

Number of Pins:5

Head Shape:Round

Electrical ratingTerminal Type:Solder Lugs For wire connection

Body Material:Brass, Nickel-Plated Corrosion-resistant

Operating Temperature:-20 °C to +55 °C

Compatible Panel Thickness:1 – 6 mm

Working Principle:

When the switch is pressed, the internal mechanism momentarily connects the circuit, allowing current to flow.

When released, the switch returns to its original state, interrupting the current and turning off the connected device or system.

The LED ring indicator illuminates when the circuit is active, giving a clear visual cue.

Applications:

• Automotive.
• Industrial Control Panels.
• Outdoor Equipment.
• DIY and Maker Projects.
• Home Automation.

Package Contents:

• 1x Metal Momentary Push Switch 16mm Waterproof with Ring Blue LED 220V
