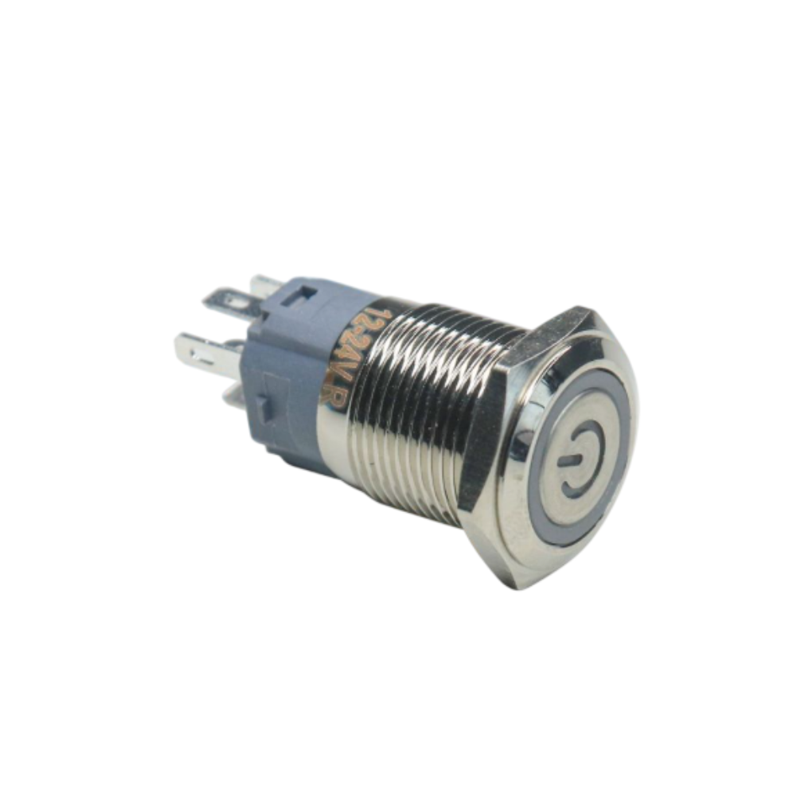

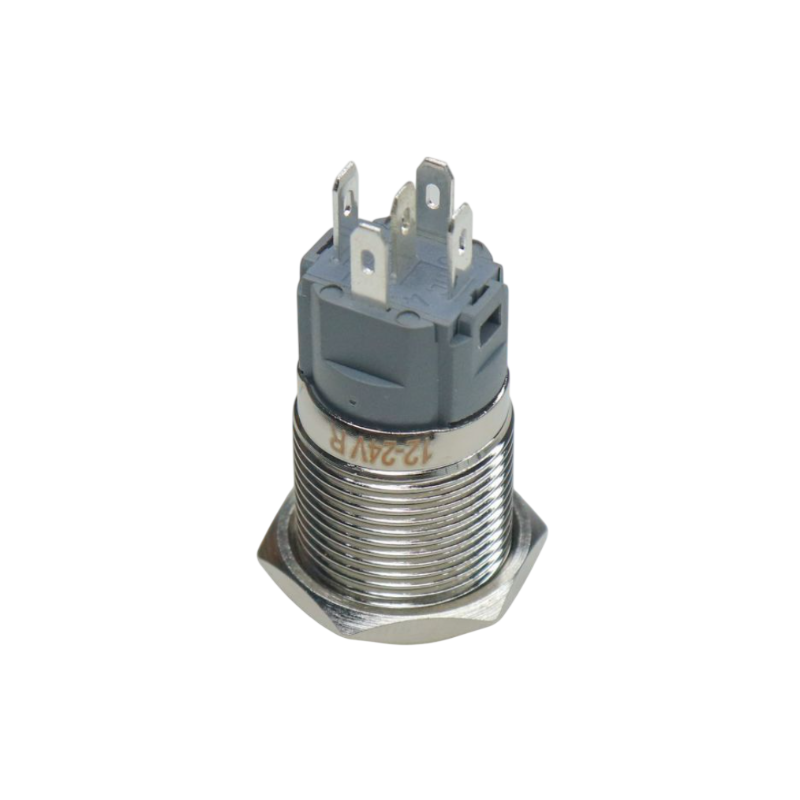

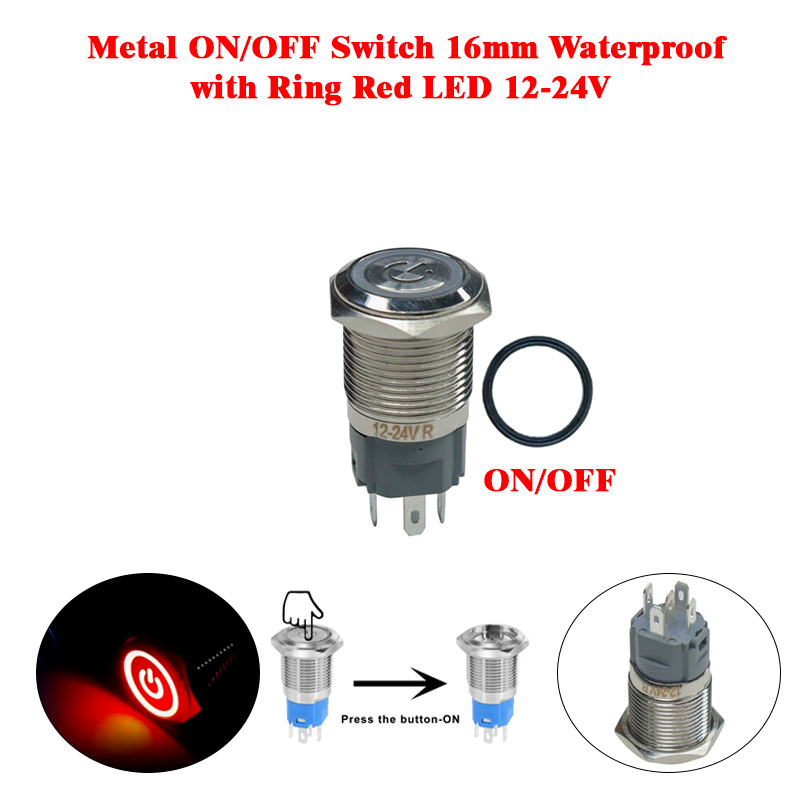

Metal ON/OFF Switch 16mm Waterproof with Ring Red LED 12-24V

The Metal Self Locking Push Switch On/Off Waterproof with LED Ring 16mm is a premium panel-mounted push button switch engineered for applications requiring dependable latching operation and long service life.

Its self-locking (latching) mechanism allows the switch to remain in the selected state after being pressed—press once to turn ON and press again to turn OFF—making it ideal for power control and equipment activation.

Features:

• Self-locking (latching) ON/OFF operation.
• Waterproof IP67 construction.
• Compact 16mm panel mount design.
• Illuminated LED ring indicator.
• Available in Blue and Red LED colors.
• LED voltage From 12VDC to 24VDC
• Durable nickel-plated brass housing.

Specifications:

Switch Type : Self Locking (Latching)

Housing Material : Chrome Plated Brass

Contact Configuration : 5 Pin

LED Voltage :From 12VDC to 24VDC

LED Color : Red

LED Ring Diameter : 13mm

Protection Rating : Waterproof

Switch Function : ON/OFF Latching

Applications:

• Industrial control panels.
• Machine control systems.
• Automotive dashboards.
• Marine electronics.
• Power supply switches.
• CNC machines.
• Home automation systems.
• DIY electronics projects.
• Access control systems.
• Control cabinets.

Package Include:

1x Metal ON/OFF Switch 16mm Waterproof with Ring Red LED 12-24V
