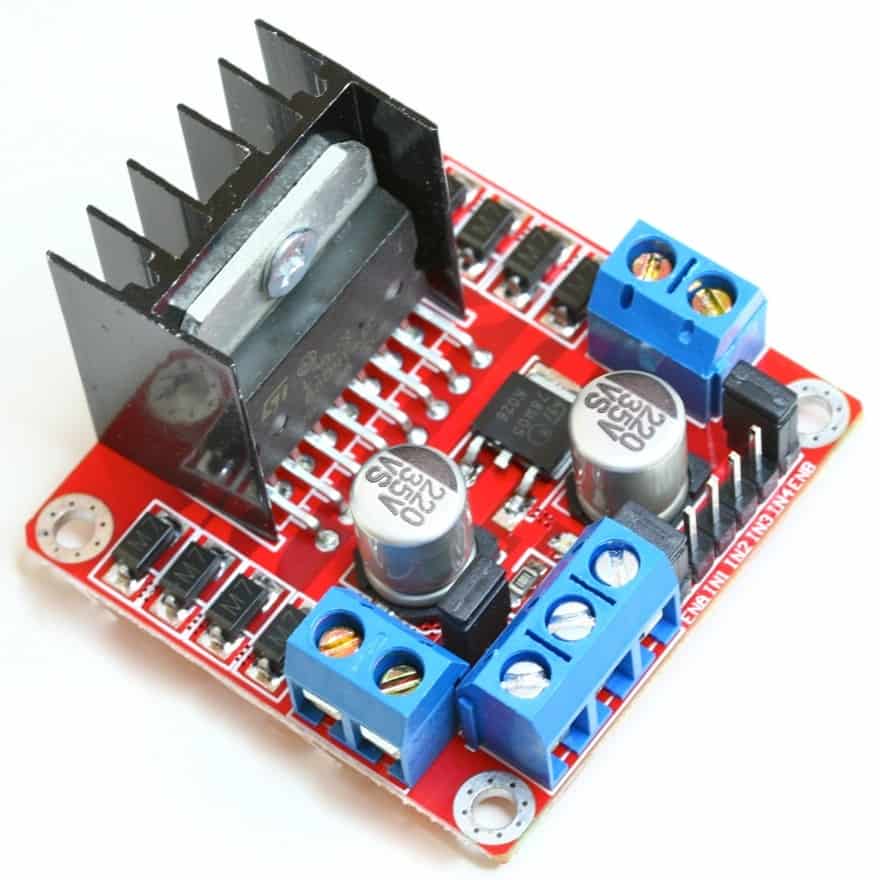

Motor Driver L298N Module For Arduino

Description

L298N Module Dual H Bridge Stepper Motor Driver Board Modules for Arduino Smart Car FZ0407

Product description:

The L298N driver module, using ST L298N chip can directly drive two 3-30V DC motor, and provides a 5V output interface, you can chip circuitry to 5V power supply, support 3.3VMCU control, you can easily control the DC motor speed and direction, you can also control the 2-phase stepper motor, smart car essential.

Product parameters:

1 Driver chip: L298N dual H-bridge driver chip

2 Terminal driver part of the supply area VMS: +5 V ~ +35 V

3 Drive part of the peak current Io: 2A / Bridge

4 Logical part of the terminal power supply range Vss :4.5-5 .5 V

5 Logical part of the operating current range: 0 ~ 36mA

6 The control signal input voltage range: 4.5-5.5V low 0V high

7 Maximum power consumption: 20W

8 Storage temperature: -25 ~ +130

9 Driver Board Size: 55mm * 60mm * 30mm

10 Driver board Weight: 33g

11 Other features: control direction indicator, power indicator, current detection, logical part of the plate to take power interface.
