Single Digit 7 Segment 2.3 Inch Com.Cathode - Red - FJS23101AH

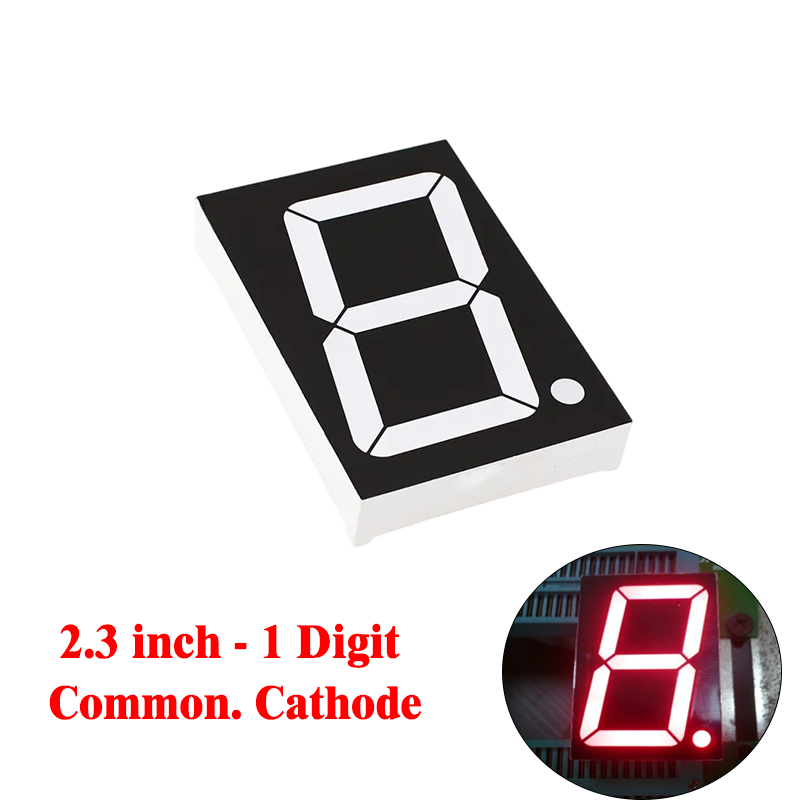

A single-digit 7-segment red LED display with a common Cathode configuration and 2.3-inch digit height is designed for clear and high-visibility numeric displays. Its large size makes it ideal for applications requiring long-distance readability, such as industrial meters, digital signage, and scoreboard systems.

Features:

• Large 2.3-inch digit size for high visibility from a distance.
• Bright Red LED illumination ensures clear readability in various lighting conditions.
• Long lifespan and low power consumption make it energy-efficient.
• Fast response time with instant ON/OFF operation.
• Easy to interface with microcontrollers and logic circuits.
• Single-digit numeric display for clear numerical representation.
• Common Cathode (CC) configuration, where all Cathode terminals are connected together.
• Red LED emission with a wavelength of ~630nm.
• Wide viewing angle for better readability.
• Robust and durable design for industrial and commercial use.
• Multiplexing support to reduce pin usage in multi-digit applications.

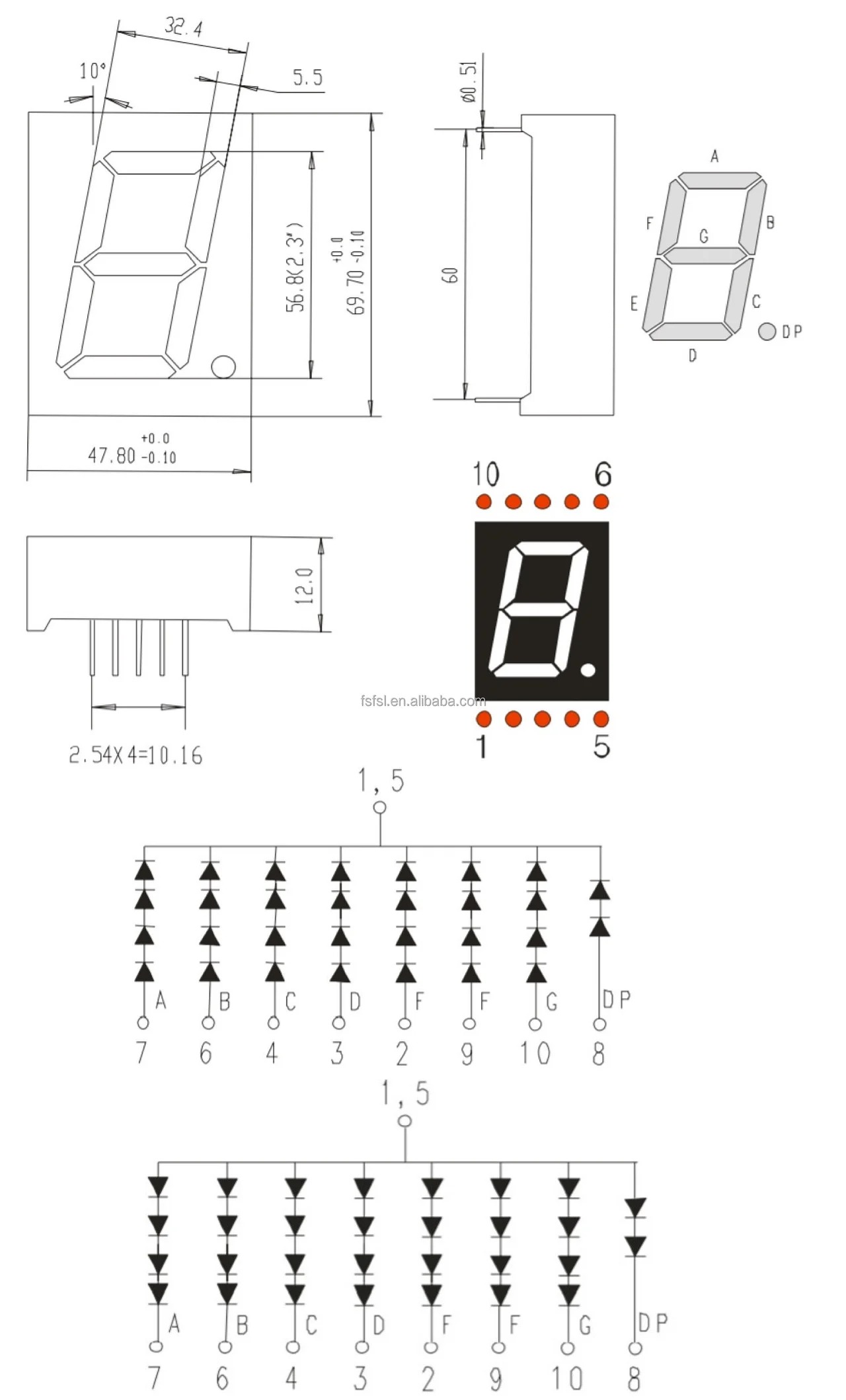

Specifications:

• Display Type: 7-Segments
• Part Number: FJS23101BH
• Configuration: Common Cathode

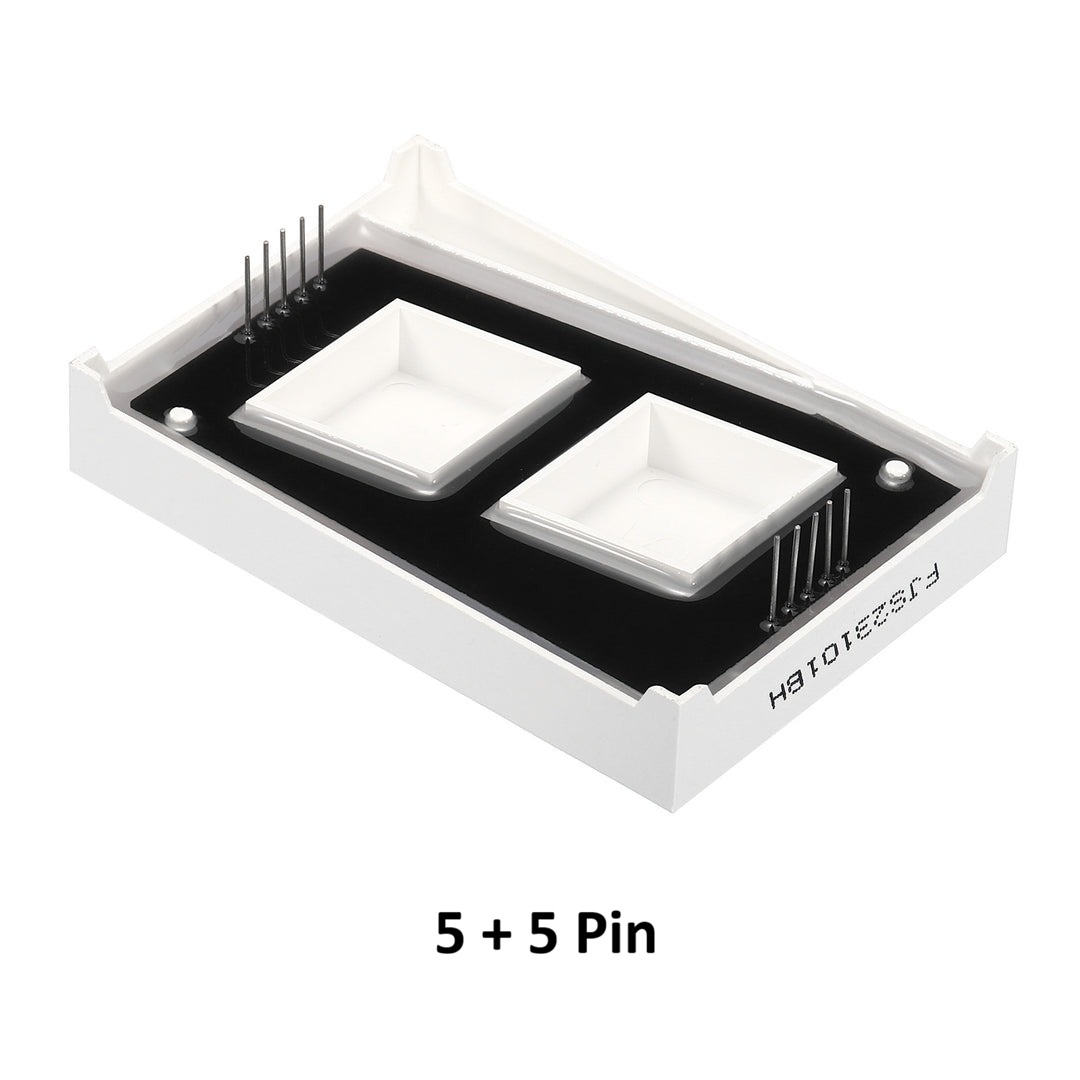

• Number of Pins: 10 pin
• LED color: Red
• Number of Digits: one digit
• Digit Height: 2.3 inch (58 4mm)
• Wavelength: 630nm
• Operating Current: 10mA –20mA /segment
• Forward Voltage: 1.8V – 2.2V /segment
• Viewing Angle Wide: (~120%)
• Operating Temperature: 40°C to +85°C
• Compatibility: Microcontrollers, Logic Circuits, and Multiplexed Displays

Applications:

• Industrial Meters (Voltage, Current, Temperature displays).
• Scoreboards and Timers (Sports, Countdown displays).
• Large Digital Clocks (Wall-mounted or outdoor clocks).
• Public Information Displays (Flight/train schedules, Queue systems).
• Home and Commercial Automation (Appliance status indicators).
• Elevator Floor Indicators (Large and clear floor number display).
